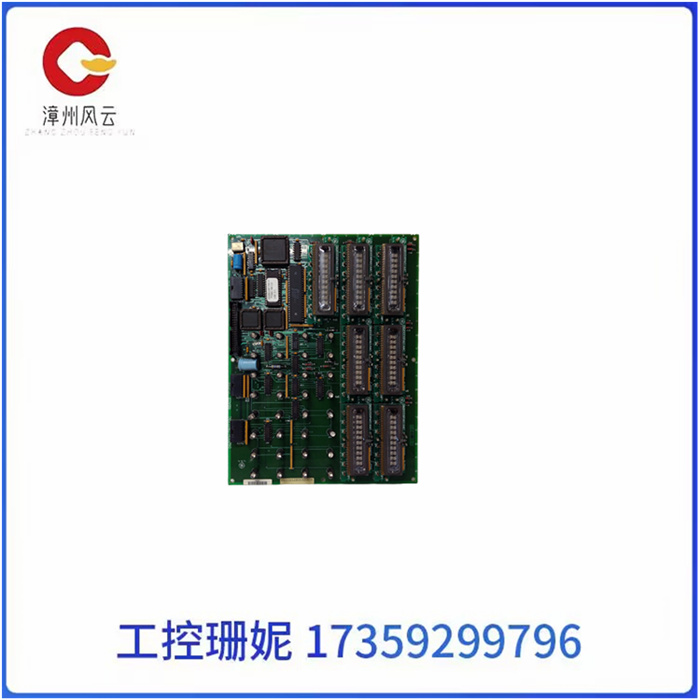

GE DS200TCTGG1AEC 数字量控制板卡 DCS系统

GE DS200TCTGG1AEC 数字量控制板卡 DCS系统

产品描述

GE 单工跳闸板DS200TCTGG1AEC装有 21 个插入式继电器。它还具有 3 个 50 针连接器和 2 个 12 针连接器。分配给 50 针连接器的 ID 是 JLY、JLX 和 JLZ。分配给 12 针连接器的 ID 是 JN 和 JM。GE Simplex 跳闸板DS200TCTGG1AEC还装有 1 个卡口式连接器。连接到卡口式连接器的信号电缆包含 2 根独立的电线，两端带有金属卡口。安装程序将一根电线插入每个连接器，然后将其牢固地压入连接器中。固定后，它会卡入连接器。要将其卸下，请将其从连接器中拉出。

带状电缆连接到 50 针连接器。由于有多个 50 针连接器，因此在更换电路板时，可能会错误地连接 50 针连接器。不正确的安装会延长驱动器脱机的时间，并可能增加驱动器周围其他设备的停机时间。为避免任何延迟，请关闭驱动器的电源，并在卸下电路板之前检查电缆如何连接到主板。用遮蔽胶带或其他方式创建临时标签，并记下电缆所连接的连接器的 ID。

检查更换板，并注意到它填充了具有相同 ID 的连接器。计划将电缆连接到更换板上的相同连接器。即使电路板的连接器位于不同的位置，电路板的功能也相同。

GE DS200TCTGG1AEC 数字量控制板卡 DCS系统

Product description

The GE simplex jump gate DS200TCTGG1AEC is equipped with 21 plug-in relays. It also features three 50-pin connectors and two 12-pin connectors. The ids assigned to the 50-pin connector are JLY, JLX, and JLZ. The ids assigned to the 12-pin connector are JN and JM. The GE Simplex jump gate DS200TCTGG1AEC also has a bayonet connector. The signal cable connected to the bayonet connector consists of 2 separate wires with metal bayonets at both ends. The installer inserts a wire into each connector and then presses it firmly into the connector. When secured, it snaps into the connector. To remove it, pull it out of the connector.

Ribbon cable is connected to a 50-pin connector. Because there are multiple 50-pin connectors, it is possible to connect the 50-pin connector incorrectly when replacing the board. Incorrect installation can prolong the time the drive is offline and may increase downtime for other devices around the drive. To avoid any delay, turn off the power to the drive and check how the cable is connected to the motherboard before removing the board. Create a temporary label with masking tape or other means and note the ID of the connector to which the cable is connected.

Check the replacement board and notice that it is filled with connectors with the same ID. Plan to connect the cable to the same connector on the replacement board. Even if the connectors of the board are located in different locations, the function of the board is the same.

GE DS200TCTGG1AEC 数字量控制板卡 DCS系统
