GE 通用电气 DS215GHDQ5AZZ01A 电路板组件

GE 通用电气 DS215GHDQ5AZZ01A 电路板组件

产品描述

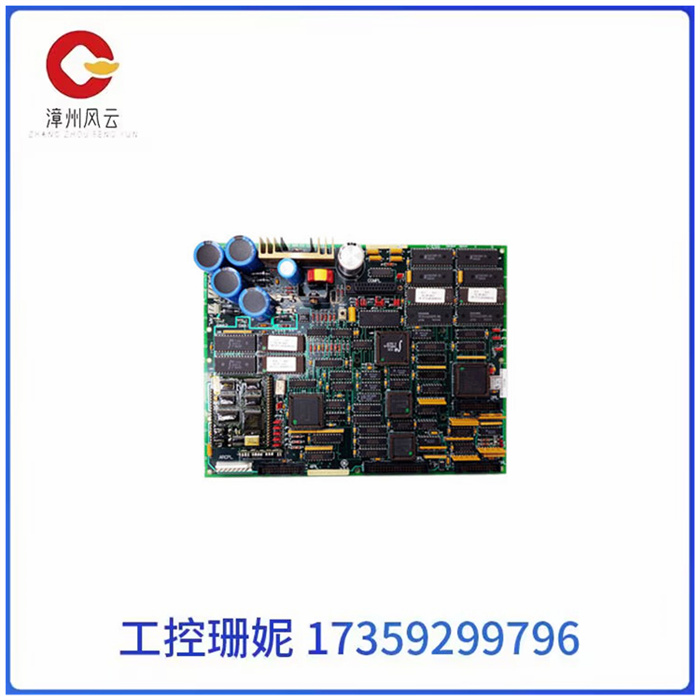

DS215GHDQ5AZZ01A是GE制造的电路板组件，用于安装在Mark V Speedtronic控制系统中。虽然 Mark V 组件不再由 GE 生产，但它们可以在 AX Control 作为经过全面测试和翻新的库存从我们这里购买。

DS215GHDQ5AZZ01A是一块包含许多组件的大板。它在每个角上钻孔以允许添加安装硬件，并沿两个边缘用数字和/或字母标记以进行对齐。在电路板表面预装了八个支座，以允许添加两个辅助板。这些板安装在电路板主表面上方并平行于电路板，并通过插入电路板表面垂直引脚连接器的电缆连接器进行通信。该板总共有六个垂直引脚电缆连接器、两个针座连接器和几个单独的引脚连接器。

其他电路板组件包括 60 多个电阻网络阵列、LED 指示灯和面板、电容器、电阻器、二极管和 50 多个集成电路，其中包括多个现场可编程门阵列、EPROM 和振荡芯片。

有关DS215GHDQ5AZZ01A的更多信息可通过数据表或用户指南访问。这些将提供有关安装、操作和正确处理的详细信息。

GE 通用电气 DS215GHDQ5AZZ01A 电路板组件

Product description

The DS215GHDQ5AZZ01A is a GE manufactured circuit board assembly for installation in Mark V Speedtronic control systems. While the Mark V components are no longer manufactured by GE, they can be purchased from us at AX Control as fully tested and refurbished stock.

The DS215GHDQ5AZZ01A is a large board with many components. It drilled holes in each corner to allow for the addition of mounting hardware and marked along both edges with numbers and/or letters for alignment. Eight supports are pre-installed on the board surface to allow the addition of two auxiliary boards. These boards are mounted above the main surface of the circuit board and parallel to the board, and communicate via a cable connector inserted into a vertical pin connector on the board surface. The board has a total of six vertical pin cable connectors, two pin base connectors, and several individual pin connectors.

Other board components include more than 60 resistor network arrays, LED indicators and panels, capacitors, resistors, diodes, and more than 50 integrated circuits, including multiple field programmable gate arrays, EPROMs, and oscillating chips.

More information about the DS215GHDQ5AZZ01A can be accessed through data sheets or user guides. These will provide detailed information on installation, operation, and proper handling.
