产品描述

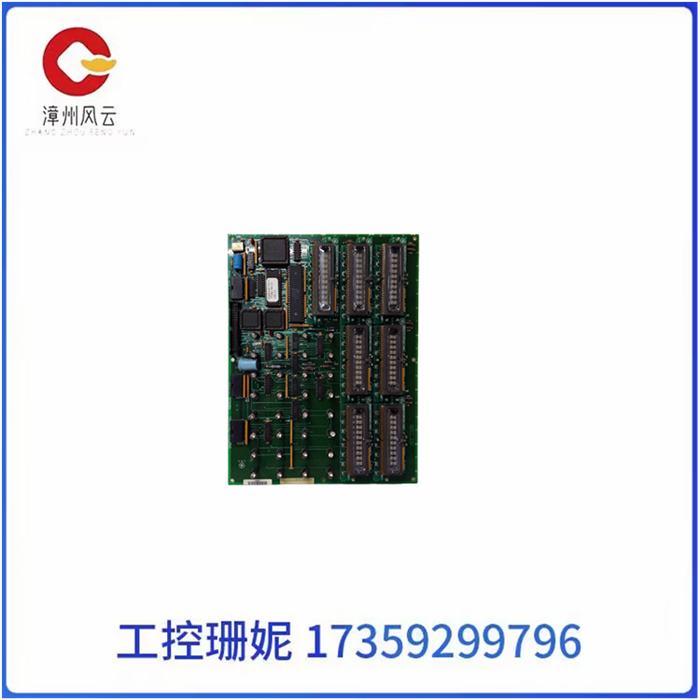

DS215TCDAG1BZZ01A是GE涡轮控制印刷电路板。GE 不再支持此卡，现在很难找到。AX Control 确实尝试将此板作为翻新或新的剩余部件保留库存。

DS215TCDAG1BZZ01A是数字I/O板。TCDA 板位于数字 I/O 内核 <Q11> 和 <Q51> 中。它能够处理来自两个TCRA板的输出信号以及来自DTBB和DTBA板的输入信号。然后，这些信号通常通过IONET发送到终端板CTBA和TCQC板。

DS215TCDAG1BZZ01A有几种类型的连接器，可以执行不同的操作。JP 连接器能够将电源从 TCPS 板传输到 <Q11> 和 <Q51> 内核。JX1 是用于 IONET 信号的连接，是一种屏蔽双绞线连接器。JX2 连接器也用于 IONET 信号。JQ 连接器连接到 DTBA 板上的 JQR 插头，并具有将信号传送到 TCDA 板的电源。JO1链路通常不与<Q11>内核一起使用，但在其他内核中，它用于通信，可以将触点输出信号写入位置4的TCRA板。JO2 连接可与 <Q11> 和 <Q51> 内核一起使用，它收集的输出信号被转录到位于位置 5 的 TCRA 板。JR连接可以将来自DTBB卡的输入信号传送到TCDA卡。DTBB 板连接到 JRR 插座。

GE DS215TCDAG1BZZ01A 具有隔离和非隔离电路

Product description

The DS215TCDAG1BZZ01A is a GE turbine control printed circuit board. GE no longer supports this card and it is now difficult to find. AX Control did try to keep this board in stock as a refurbished or new surplus part.

The DS215TCDAG1BZZ01A is a digital I/O board. The TCDA board is located in the digital I/O cores <Q11> and <Q51>. It is capable of processing output signals from both TCRA boards as well as input signals from DTBB and DTBA boards. These signals are then sent to the terminal boards CTBA and TCQC, usually via IONET.

The DS215TCDAG1BZZ01A has several types of connectors that can perform different operations. The JP connector is capable of transferring power from the TCPS board to the <Q11> and <Q51> cores. JX1 is a shielded twisted pair connector used for IONET signals. The JX2 connector is also used for IONET signals. The JQ connector is connected to the JQR plug on the DTBA board and has a power supply to transmit the signal to the TCDA board. The JO1 link is not usually used with the <Q11> kernel, but in other cores it is used for communication and can write the contact output signal to the TCRA board at position 4. The JO2 connection can be used with the <Q11> and <Q51> cores, and the output signals it collects are transcribed to the TCRA board at position 5. The JR connection can transmit the input signal from the DTBB card to the TCDA card. The DTBB board is connected to the JRR socket.
