产品描述

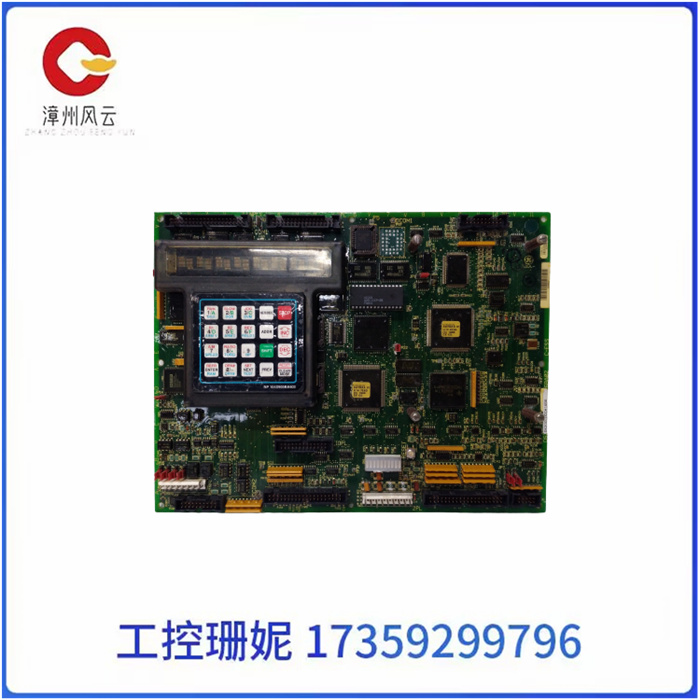

GE RST 模拟 I/O 板DS200TCQAG1包含 34 个 40 针连接器、6 个 200 针连接器和 1 个跳线。该板还有 <> 个 LED。LED 排列成两排，每排三个 LED。当电路板安装在驱动器中时，它安装在其他板之间，从板柜的玻璃正面可以看到GE RST模拟I/O板DS<>TCQAG<>侧面。

LED 的排列方式使操作员可以在驱动器运行时看到它们。LED 指示电路板 6 种功能的运行状况，并在活动发生时闪烁。要了解每个 LED 的用途，您可以阅读出厂时随原装板随附的安装说明中提供的有关 LED 的信息。驱动操作员可以一目了然地确定电路板的健康状况和正在进行的处理。

JA、JB、JD、JE、JG 和 3PL 是分配有 34 针连接器的 ID。ID 印在每个连接器旁边的电路板表面上。当您计划更换主板时，请在有缺陷的电路板保留在驱动器中时对其进行检查，并在带状电缆上标记其所连接的连接器的 ID。它将加快新板的安装速度，因为您将立即知道将 34 针带状电缆连接在哪里。用连接到电路板的连接器握住带状电缆以将其拆下。

GE DS215TCEAG1BZZ01A 包含 34 个 40 针连接器

Product description

The GE RST analog I/O board DS200TCQAG1 contains 34 40-pin connectors, six 200-pin connectors, and one jumper. The board also has a <> LED. The leds are arranged in two rows with three leds per row. When the board is mounted in the driver, it is mounted between the other boards, and the GE RST analog I/O board DS<>TCQAG<> side is visible from the glass front of the board cabinet.

The leds are arranged in such a way that the operator can see them while the driver is running. Leds indicate the health of the board's 6 functions and flash when activity occurs. To find out what each LED is for, you can read the information about the LED provided in the installation instructions that came with the original board at the factory. The driver operator can determine at a glance the health of the board and the processing being done.

JA, JB, JD, JE, JG, and 3PL are the ids assigned 34-pin connectors. The ID is printed on the board surface next to each connector. When you plan to replace the motherboard, inspect the defective circuit board while it remains in the drive and mark the ID of the connector to which it is attached on the strip cable. It will speed up the installation of new boards because you will immediately know where to connect the 34-pin ribbon cable. Remove the strip cable by holding it with a connector connected to the board.
