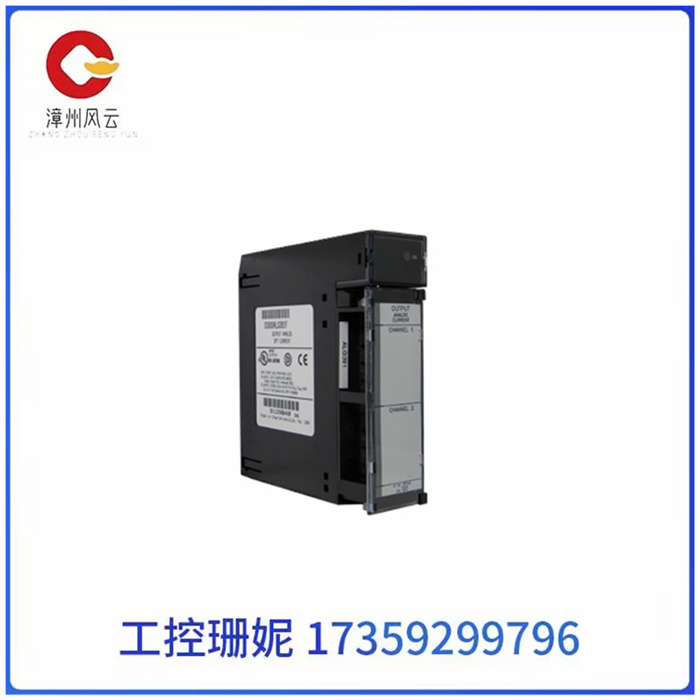

IC693ALG391F GE 具有2个模拟输出通道

IC693ALG391F GE 具有2个模拟输出通道

IC694ALG391是一款模拟输出模块，以前由GE Fanuc Automation制造，现已被艾默生自动化收购。该模块为单槽模块，具有两2)个模拟输出通道，可产生电压和电流输出信号，如0-20 mA/ 4-20 mA和1-5VDC/ 0-5 VDC电信号。该模块具有特定的分辨率，尤其是4-20 mA时为4 A(1 LSB=4A);0-20毫安时为5安(1 LSB= 5安); 1至5VDC时为1mV(1 LSB = 1mV ), 0至5VDC时为1.25 mV(1 LSB= 1.25 mN)。

该模块特别用于驱动调制控制装置，如控制阀、百叶窗、风门、变频驱动器(VFD)和类似装置。它也可用于转发信号和连接面板仪表、数据记录器和其他接收元件。IC694ALG391安装在5插糖和10插槽底板的任何/O安装位置。它有一个描述模块运行状态的模块正常状态指示器。

当配置为4至20毫安时，在25摄氏度(77华氏度)的工作温度下，模块的绝 对精度为8安;0至20毫安配置在25摄氏度(77华氏度)时为10安;工作电压为1至5V时，25°c(77 of)时为50mV;工作电压为0至5V时，25c(77 of)时为50mV。IC 694 alg 391在+5V电源下的内部功耗为30 mA，在+24VDC隔离背板电源或用户提供的电源下的功耗为215 mA。

IC693ALG391F GE 具有2个模拟输出通道

The IC694ALG391 is an analog output module formerly manufactured by GE Fanuc Automation and now acquired by Emerson Automation. The module is a single-slot module with two 2) analog output channels that can generate voltage and current output signals such as 0-20 mA/ 4-20 mA and 1-5VDC/ 0-5 VDC electrical signals. The module has A specific resolution, in particular 4A (1 LSB=4A) at 4-20 mA; 0-20 mah is 5 amps (1 LSB= 5 amps); 1mV(1 LSB= 1mV) for 1 to 5VDC and 1.25 mV(1 LSB= 1.25 mN) for 0 to 5VDC.

The module is especially used to drive modulation control devices such as control valves, shutters, damper, variable frequency drivers (VFDS) and similar devices. It can also be used to forward signals and connect panel meters, data loggers and other receiving elements. IC694ALG391 is installed in any /O mounting position on the 5-socket sugar and 10-socket baseplate. It has a module health indicator that describes the operating state of the module.

When configured at 4 to 20 mA, the module has an absolute alignment accuracy of 8 amps at an operating temperature of 25 degrees Celsius (77 degrees Fahrenheit); The 0 to 20 MA configuration is 10 amps at 25 degrees Celsius (77 degrees Fahrenheit); When the operating voltage is 1 to 5V, 50mV at 25°c(77 of); The operating voltage is 0 to 5V, and 50mV at 25c(77 of). The IC 694 alg 391 has an internal power consumption of 30 mA at +5V power supply and 215 mA at +24VDC isolated backplane power supply or user-supplied power supply.

IC693ALG391F GE 具有2个模拟输出通道
