IC693ALG392  GE 系统控制器模块

IC693ALG392  GE 系统控制器模块

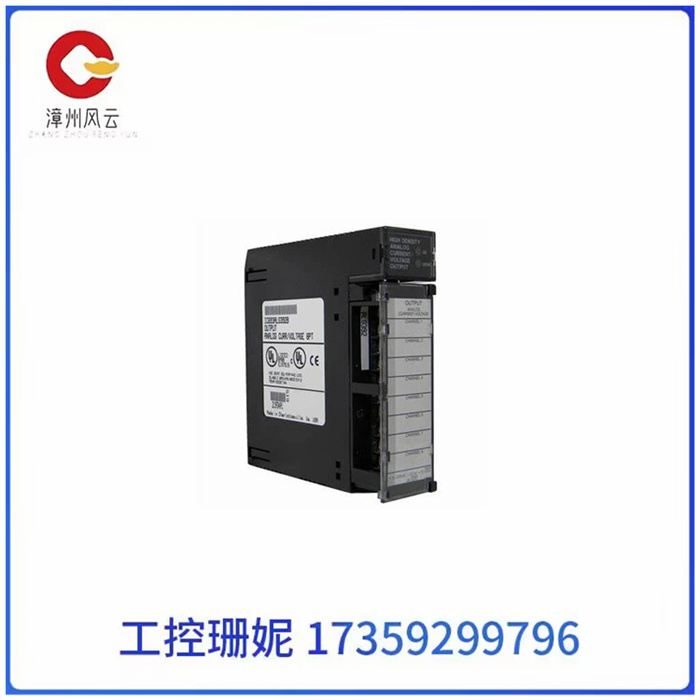

IC693ALG392是PACSystems RX3i和90-30系列的模拟电流/电压输出模块。该模块有八个单端输出通道，根据用户的安装，带有电压输出和/或电流环路输出。每个通道可由配置软件为后续示波器(O至+10伏)生成单极、(-10至+10犬)双极、0至20毫安或4至20毫安。

每个通道能够翻译15至16位。这取决于用户偏好的范围。所有八个通道每8窒秒更新—次。

这IC693ALG392在当前模式下，模块向CPU报告每个通道的开路故障。当系统电源受到千扰时，模块可以进入已知的zui后状态。如果外部电源持续施加到模块，每个输出将保持其zui后的值或根据配置重置为零。可以安装在RX3i或90-30系列系统的任何I/O插槽中。

该模块必须从直接连接到端子板的外部电源获得24VDC电源。每个输出通道都是单端的，出厂时调整至0.625ua，这可能会因电压而异。用户应注意，在存在恶劣RF干扰的情况下，电流输出的模块精度可能降低至+/-1%FS，电压输出的模块精度可能降低至+/-3%FS。还应注意，该模块必须固定在金属外壳中才能正常工作。

IC693ALG392  GE 系统控制器模块

The IC693ALG392 is an analog current/voltage output module for the PACSystems RX3i and 90-30 series. The module has eight single-ended output channels with voltage outputs and/or current loop outputs depending on the user's installation. Each channel can be configured by software to generate monopole, (-10 to +10 dogs) bipolar, 0 to 20 mA, or 4 to 20 mA for subsequent oscilloscopes (O to +10 volts).

Each channel can translate 15 to 16 bits. It depends on the range of user preferences. All eight channels are updated every 8 seconds.

This IC693ALG392 In the current mode, the module reports an open circuit fault for each channel to the CPU. When the system power supply is disturbed, the module can enter the last known state. If an external power supply is continuously applied to the module, each output will retain its last value or reset to zero according to the configuration. It can be installed in any I/O slot of the RX3i or 90-30 series system.

The module must obtain 24VDC power from an external power supply directly connected to the terminal board. Each output channel is single-ended and factory-adjusted to 0.625ua, which may vary with voltage. Users should note that in the presence of harsh RF interference, the module accuracy of the current output may be reduced to +/-1%FS and the module accuracy of the voltage output may be reduced to +/-3%FS. It should also be noted that the module must be secured in a metal housing in order to function properly.

IC693ALG392  GE 系统控制器模块
