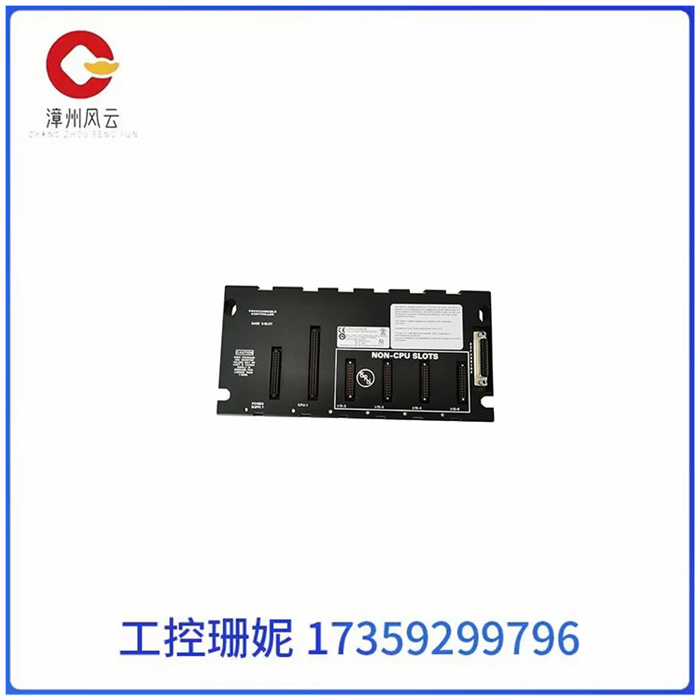

IC693CHS397 GE  插槽底座模块

IC693CHS397 GE  插槽底座模块

I/O 模块

输入/输出模块有模拟量和开关量两大种类。每个输入/输出模块均可直接插到端子板上 CPU本地和通过FBP分布式扩展的子站。在CPU本地最多可扩展10个1/0模块(固件版本V1.2以上)分布式子站最多可扩展7个/0模块。在这些模块中含有输入/输出可设置的模块种类，以供用户灵活的使用。

I/0 底板

模拟量和开关量均使用同一种/0底板而同一种底板可实现1线2线和3线不同的接线模式。从而提供用户在没有输入/输出模块时的预接线。底板分为:24VDC和230VAC两种不同的电压等级，而接线方式则有螺钉和弹簧两种可选

FBP 总线适配器模块

这种模块集成了一定数量的开关量输入/输出，带带有中立的总线接口功能通过可选FBP总线适配器实现和CPU的通讯及分布式/O扩展。同时，这个分布模块又可集中扩展最多7个输入/输出模块(最多4个模拟量模块)。

IC693CHS397 GE  插槽底座模块

I/O module

There are two types of input/output modules: analog and switching. Each input/output module can be plugged directly into substations on the terminal board that are CPU local and distributed by FBP. Up to 10 1/0 modules (firmware version V1.2 or above) can be expanded locally in the CPU distribution sub-station up to 7 /0 modules. These modules contain input/output configurable module types for flexible use by users.

I/0 mainboard

Both analog and switching quantities use the same /0 baseplate, and the same baseplate can realize different wiring modes of 1-wire, 2-wire and 3-wire. This provides the user with pre-wiring when there is no input/output module. The base plate is divided into :24VDC and 230VAC two different voltage levels, and the wiring method is available with screws and springs

FBP bus adapter module

This module integrates a certain number of switching inputs/outputs with a neutral bus interface function for communication with the CPU and distributed /O expansion via an optional FBP bus adapter. At the same time, this distribution module can be centrally expanded up to 7 input/output modules (up to 4 analog modules).

IC693CHS397 GE  插槽底座模块
