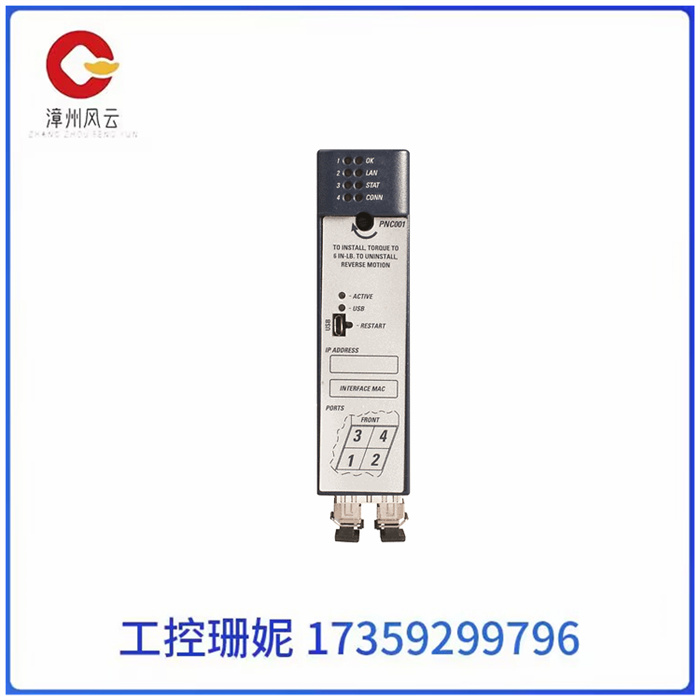

IC695PNC001AF  每个网络128个/O设备

IC695PNC001AF  每个网络128个/O设备

IC695PNCOO1兼容PACSystem RX3iCPU315或CPU320，固件版本为7.0或更高。该模块附带两(2)个RJ-45和两(2)个SFP插槽，带有单独销售的SFP连接器。这些PROFINET端口只分配了一个IP地址。一个CPU上zui多可以安装四(4)个C695PNC001，并且只能安装在CPU所在的主机架上。zui多六十四(64)个/O设备可以连接到一(1)个控制器;每个网络128个/O设备，分布在八(8)个/O控制器中。此外，一个网络中zui多可以安装八8)个/O设备。该模块的数据更新时间可配置为1 ms、2 ms、4 ms、8 ms、16 ms、32 ms、64 ms、128 ms、256 ms和512 ms.

IC695PNCOO1可在通电状态下拆饵和插入(RIUP)。它占用机箱的一个插槽，未安装SFP设备时消耗0.5A，安装两(2)个SFP设备时zui大消耗1.2A,其中—个SFP设备消耗0.35A。在5.5 VDC下，该模块zui大消耗1.5A.

除了嵌入式双PROFINET端口之外，该模块还带有一个微型USB连接器，用于通过命令行接口与计算机进行通信。它必须在0-60摄氏度的温度范围内工作。

IC695PNC001AF  每个网络128个/O设备

The IC695PNCOO1 is compatible with PACSystem RX3iCPU315 or CPU320 with firmware version 7.0 or higher. The module comes with two (2) RJ-45s and two (2) SFP slots with separately sold SFP connectors. These PROFINET ports are assigned only one IP address. A maximum of four (4) C695PNC001s can be installed on a CPU, and can only be installed on the host rack where the CPU is located. Up to sixty-four (64) /O devices can be connected to one (1) controller; Each network has 128 /O devices, distributed among eight (8) /O controllers. In addition, a maximum of eight (8) /O devices can be installed in a network. The data update time of the module can be configured as 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms and 512 ms.

The IC695PNCOO1 can be decoyed and inserted (RIUP) in a powered state. It occupies one slot in the chassis and consumes 0.5A when no SFP device is installed, and A maximum of 1.2A when two (2) SFP devices are installed, of which one SFP device consumes 0.35A. At 5.5VDC, the module consumes up to 1.5A.

In addition to the embedded dual PROFINET ports, the module comes with a micro-USB connector for communication with the computer via a command line interface. It must operate in a temperature range of 0-60 degrees Celsius.

IC695PNC001AF  每个网络128个/O设备
