产品描述

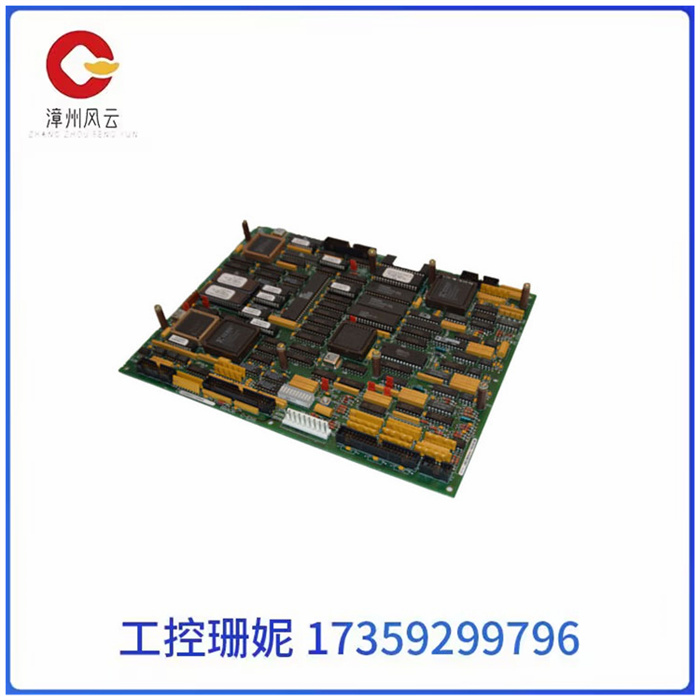

GE燃气轮机控制板DS3800DADB1A1A具有一根永久连接到板上的20针带状电缆和3针型连接器。GE燃气轮机控制板DS3800DADB1A1A还装有用于连接各种组件的端子。板上的端子在安装电路板时为您提供了极大的多功能性。无需修改电路板或在电路板上焊接新组件， 您可以将组件添加到端子中，这将改变电路板执行的处理.

要添加组件，请使用螺丝刀松开要在其之间添加组件的两个端子顶部的螺钉。使用制造商提供的主板信息来描述端子的使用。然后，滑动端子中的引线。准备好后拧紧端子。如有必要，可以在以后拆卸或更换组件。确保向电路板添加组件的个人对电路板以及添加组件将如何改变电路板的操作有很好的了解。

更改电路板操作的另一种方法是使用跳线配置电路板。每个 3 针跳线有 2 个位置。一个位置是跳线覆盖引脚 1 和 2 时。另一个位置是跳线覆盖引脚 2 和 3 时。工厂提供的信息描述了跳线设置如何改变电路板的处理。每个跳线都有一个默认位置。这是电路板出厂时跳线设置的位置。

GE DS3800DADB1A1A 用于连接各种组件的端子

Product description

The GE gas turbine control panel DS3800DADB1A1A has a 20-pin ribbon cable permanently attached to the panel and a 3-pin connector. The GE gas turbine control board DS3800DADB1A1A also contains terminals for connecting various components. The on-board terminals give you great versatility when mounting the board. Instead of modifying the board or welding new components onto the board, you can add components to the terminals, which will change the processing performed by the board.

To add components, use a screwdriver to loosen the screws at the top of the two terminals between which you want to add components. Use the motherboard information provided by the manufacturer to describe the use of terminals. Then, slide the lead in the terminal. Tighten the terminals when ready. If necessary, the components can be removed or replaced later. Make sure that the individual adding components to the board has a good understanding of the board and how adding components will change the operation of the board.

Another way to change the operation of the board is to configure the board using jumpers. Each 3-pin jumper has 2 positions. One position is when the jumper covers pins 1 and 2. Another position is when the jumper covers pins 2 and 3. The information provided by the factory describes how the jumper Settings change the board's handling. Each jumper has a default position. This is where the jumper is set when the board is shipped.
