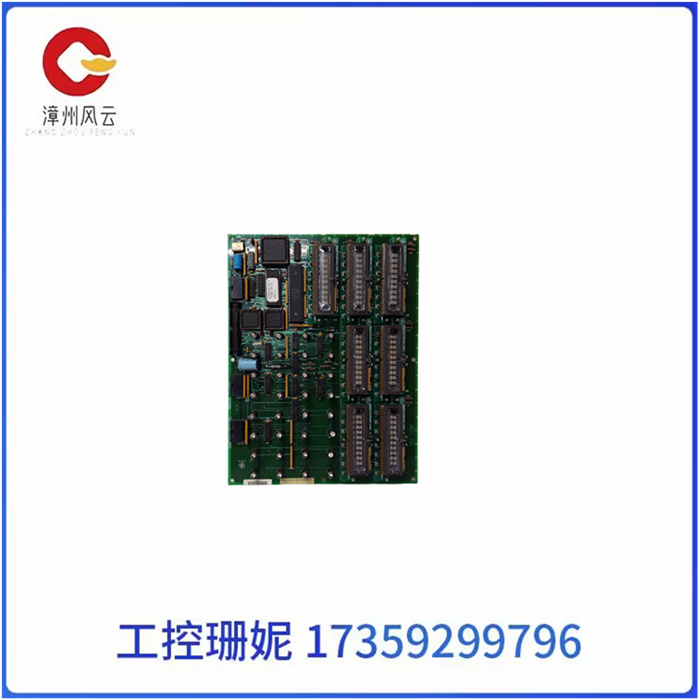

GE DS3800DDIB  具有8个微调电阻和2个跳线

GE DS3800DDIB  具有8个微调电阻和2个跳线

产品描述

GE辅助驱动接口控制板DS3800DDIB具有8个微调电阻和2个跳线。GE辅助驱动接口控制板DS3800DDIB还装有9个测试点和12个电阻。微调电阻器的 ID 为 VCAL、VMET、MVC、IFC、IFM、IAC、TIA 和 IAM。微调电阻器使安装人员能够根据驱动器的特定要求校准电路板。需要一把小平头螺丝刀来调整组件。还需要使用测试仪设备进行调整。安装人员将调整微调器电阻并多次测试，直到指示所需的结果。

安装电路板时，最佳做法是记录电路的设置，以便在必须更换电路板时，可以将更换板校准为相同的规格。保留有关电路板的其他重要信息的设置。这包括序列号和型号，以及联系客户支持的说明。

当您准备更换电路板时，请准备好一个针对正在执行的测试进行校准的测试仪设备，并检查探头以确保它们处于良好状态。还要检查以确保它们与测试仪兼容。将更换板放在平坦干净的表面上，并使用测试点测试板上的各种电路。每个微调器电阻器用于调整特定电路。当所有电路都与原始板上的设置匹配时，您就可以安装替换板了。

GE DS3800DDIB  具有8个微调电阻和2个跳线

Product description

The GE Auxiliary Drive interface control board DS3800DDIB has 8 trimmer resistors and 2 jumpers. The GE Auxiliary Drive Interface control board DS3800DDIB is also equipped with 9 test points and 12 resistors. The ids of the trimmer resistors are VCAL, VMET, MVC, IFC, IFM, IAC, TIA and IAM. Fine-tuning resistors enables installers to calibrate the board to the specific requirements of the driver. A small flat-head screwdriver is needed to adjust the assembly. Adjustments also need to be made using tester equipment. The installer will adjust the trimmer resistance and test it several times until the desired result is indicated.

When installing a circuit board, it is best practice to document the Settings of the circuit so that the replacement board can be calibrated to the same specifications if the board must be replaced. The Settings retain other important information about the board. This includes the serial number and model number, as well as instructions for contacting customer support.

When you are ready to replace the board, have a tester device calibrated for the test being performed and check the probes to make sure they are in good condition. Also check to make sure they are compatible with the tester. Place the replacement board on a flat, clean surface and test the various circuits on the board using test points. Each trimmer resistor is used to adjust a particular circuit. When all the circuits match the Settings on the original board, you are ready to install the replacement board.

GE DS3800DDIB  具有8个微调电阻和2个跳线
