GE DS3800DEPB1A1A 励磁电源板 具有1根20针带状电缆

GE DS3800DEPB1A1A 励磁电源板 具有1根20针带状电缆

产品描述

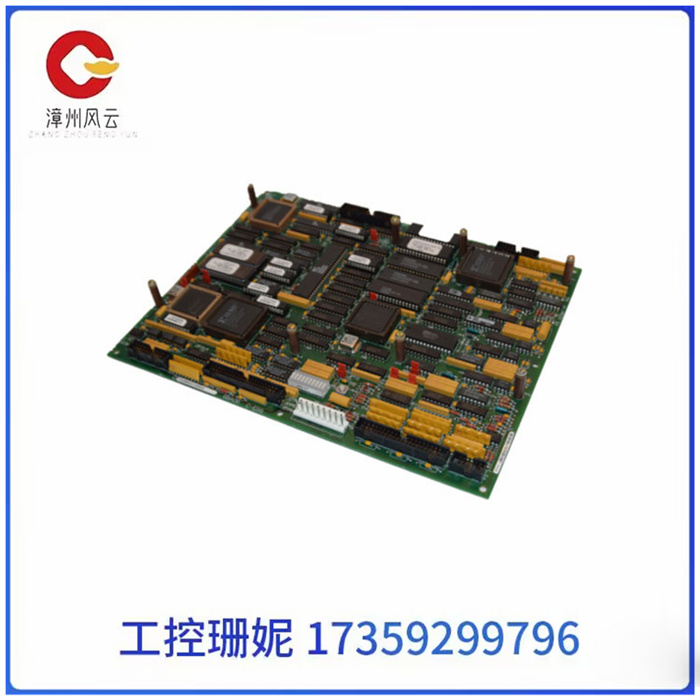

GE励磁电源板DS3800DEPB1A1A具有1根20针带状电缆和5个10针连接器。GE LCI 励磁器控制板DS3800DECA1B1B1A1A还配备了 4 个用于添加组件的端子和 2 个微调电阻器。

20 针带状电缆无法从板上拆卸。相反，它永久连接到主板，并用作驱动器的主连接。它的长度为 6 英寸，设计用于连接到位于驱动器内部的连接器。命令信号在 20 股独立的导线中传输。一些信号由电路板接收，而其他信号则从电路板发送到其他电路板和设备。

从驱动器中卸下主板时，必须采取几个步骤来保护 20 针带状电缆。首先，断开任何 10 针电缆并暂时将它们移开。然后，用一只手抓住 20 针连接器并轻轻拔下插头。用一只手卸下将主板固定在机架中的 4 个螺钉。用另一只手将电路板固定到位。卸下所有螺钉后，从驱动器中卸下主板。如果握住电路板并拉动电路板以断开带状电缆，则 20 针带状电缆可能会损坏。

GE DS3800DEPB1A1A 励磁电源板 具有1根20针带状电缆

Product description

The GE excitation power board DS3800DEPB1A1A has one 20-pin ribbon cable and five 10-pin connectors. The GE LCI exciter control board DS3800DECA1B1B1A1A is also equipped with 4 terminals for adding components and 2 trimmer resistors.

The 20-pin ribbon cable cannot be removed from the board. Instead, it is permanently connected to the motherboard and serves as the main connection for the drive. It is 6 inches in length and is designed to connect to a connector located inside the drive. The command signal is transmitted in 20 separate wires. Some signals are received by the board, while other signals are sent from the board to other boards and devices.

When removing the motherboard from the drive, several steps must be taken to protect the 20-pin ribbon cable. First, disconnect any 10-pin cables and temporarily move them out of the way. Then, grab the 20-pin connector with one hand and gently unplug it. Use one hand to remove the four screws that hold the motherboard in the rack. Use your other hand to hold the board in place. After removing all screws, remove the motherboard from the drive. If you hold the board and pull the board to disconnect the ribbon cable, the 20-pin ribbon cable may be damaged.
