DS3800DGRC1B1C 板的一侧有 32 个方形金电容器

DS3800DGRC1B1C 板的一侧有 32 个方形金电容器

产品描述

DS3800DGRC1B1C是发电机的稳压电路板。通用电气生产了这种调节器电路板，作为Speedtronic Mark IV系列燃气轮机控制的一部分。

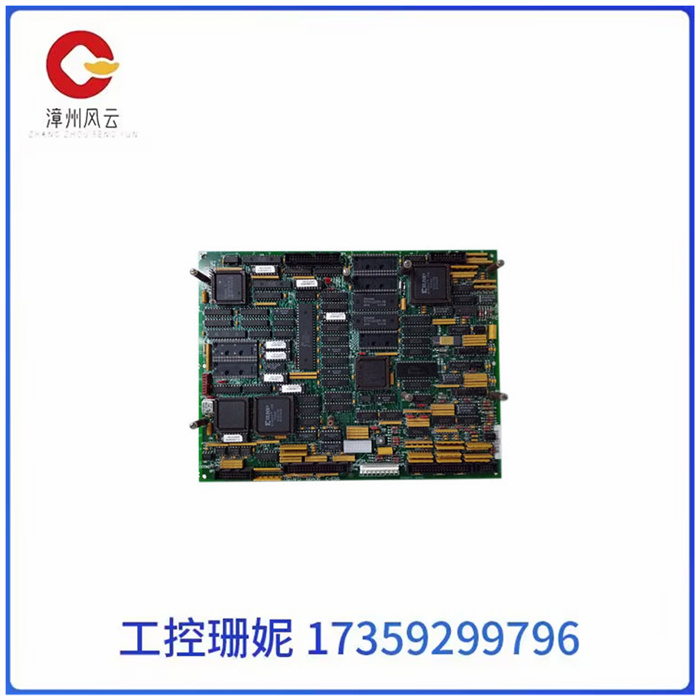

DS3800DGRC1B1C板的一侧有 32 个方形金电容器。有3800个大的黄色电池形电容器，以及两个中型电池形黄色电容器和1个小型黄色电池形电容器。电路板具有两个黑色连接器端口 - 一个较大，一个较小。电路板侧面的两个黑色连接器端口之间有一个红色和一个黑色开关.在电路板的一侧是一系列带有蓝色跳线的跳线引脚。这些跳线使操作员能够更改电路板的功能。该板有几个小型的彩色条带二极管和电阻器。板上还有几个小的暗红色电阻器。DS1DGRC<>B<>C调节板在矩形板的一个长边上用白色字母标有 A 到 J。

DS3800DGRC1B1C是稳压器电路板。稳压器通常用于调节系统中运行的电压电平。当系统中需要可靠和一致的电压时，稳压器是理想的选择。通过稳压器产生一致的电压，无论条件或输入电压发生任何变化，该电压仍保持恒定。此外，稳压器还起到缓冲作用，保护部件免受任何电气损坏。

DS3800DGRC1B1C 板的一侧有 32 个方形金电容器

Product description

DS3800DGRC1B1C is the voltage regulator circuit board of the generator. General Electric produced this regulator circuit board as part of the Speedtronic Mark IV Series of gas turbine controls.

The DS3800DGRC1B1C board has 32 square gold capacitors on one side. There are 3,800 large yellow battery-shaped capacitors, as well as two medium-sized battery-shaped yellow capacitors and one small yellow battery-shaped capacitor. The board features two black connector ports - one larger and one smaller. There is a red and a black switch between the two black connector ports on the side of the board. On one side of the board is a series of jumper pins with blue jumpers. These jumpers enable the operator to change the functionality of the board. The board has several small colored strip diodes and resistors. There are also a few small dark red resistors on the board. DS1DGRC<>B<>C Adjustment plates are marked A to J in white letters on one long side of the rectangular plate.

DS3800DGRC1B1C is a voltage regulator circuit board. A voltage regulator is usually used to regulate the voltage level operating in a system. When reliable and consistent voltage is required in a system, a voltage regulator is the ideal choice. A consistent voltage is generated through the regulator, which remains constant regardless of any change in conditions or input voltage. In addition, the regulator acts as a buffer to protect the components from any electrical damage.

DS3800DGRC1B1C 板的一侧有 32 个方形金电容器
