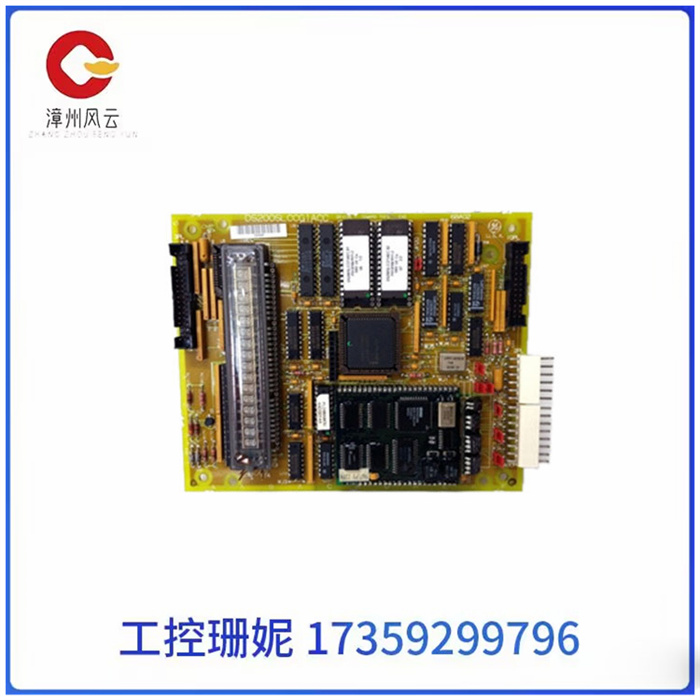

DS3800DPSS1B1B 涡轮机控制板 具有6个保险丝

DS3800DPSS1B1B 涡轮机控制板 具有6个保险丝

产品描述

GE涡轮机控制板DS3800DPSS1B1B具有6个保险丝和1个34针连接器。GE涡轮机控制板DS3800DPSS1B1B还装有7个端子，带有固定螺钉，多个电容器和1个跳线。

板上的单个跳线具有 ID。ID为J1，它使安装人员能够定制GE涡轮机控制板DS3800DPSS1B1B执行的处理。要了解跳线如何配置电路板，请参阅从工厂收到电路板时随主板提供的打印信息。

您在纸箱中收到了有关保修、联系客户支持、其他传单和更新的信息，以及有关主板安装的小册子。小册子中包括对跳线（J1）的描述。跳线有 2 个支撑位置，每个位置导致电路板配置不同。电路板出厂时跳线处于默认位置。这由工厂定义，通常是最常见的配置设置。跳线覆盖构成跳线的 2 个引脚中的 3 个。跳线安装在引脚 1 和 2 或引脚 2 和 3 上。在 2 个引脚之间接触，电路板处理产生的信号以配置电路板。

DS3800DPSS1B1B 涡轮机控制板 具有6个保险丝

Product description

The GE turbine control board DS3800DPSS1B1B has 6 fuses and 1 34-pin connector. The GE turbine control board DS3800DPSS1B1B is also fitted with 7 terminals with set screws, multiple capacitors and 1 jumper.

A single jumper on the board has an ID. ID J1, it enables installers to customize the processing performed by the GE turbine control board DS3800DPSS1B1B. To learn how jumpers configure the board, refer to the print information that came with the board when you received the board from the factory.

In the carton you received information about warranties, contact customer support, other flyers and updates, as well as brochures about motherboard installation. The booklet includes a description of the jumper (J1). The jumper has two support positions, each resulting in a different configuration of the board. The jumper is in the default position when the board is shipped. This is defined by the factory and is usually the most common configuration setting. The jumper covers 3 of the 2 pins that make up the jumper. Jumpers are mounted on pins 1 and 2 or pins 2 and 3. In contact between the two pins, the board processes the resulting signal to configure the board.

DS3800DPSS1B1B 涡轮机控制板 具有6个保险丝
