产品描述

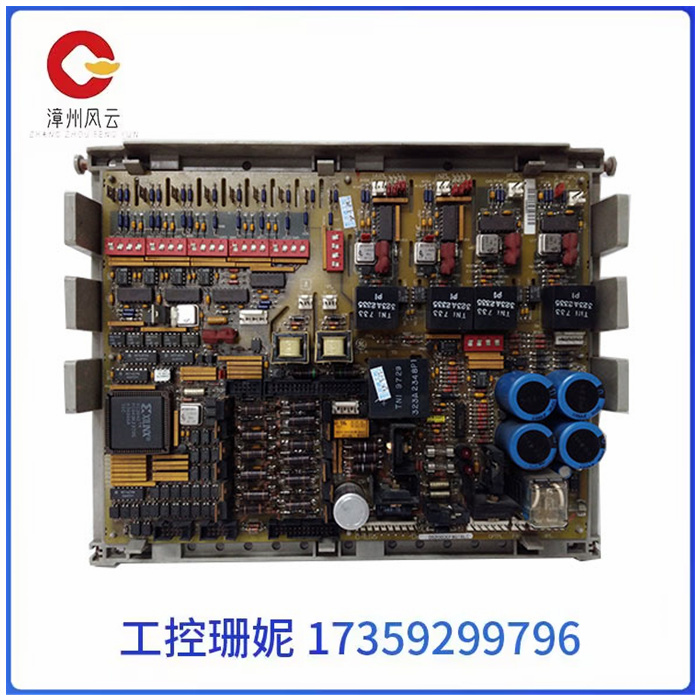

GE数字到模拟输出板DS3800HCVA1J1H具有模块化连接器，用于连接到驱动器和固定杆，用于将板固定在驱动器中。GE数字到模拟输出板DS3800HCVA1J1H还装有14个跳线和2个琥珀色指示灯LED。该板还具有 3 个可从板正面访问的连接器和 4 个微调电阻器。

微调电阻器通常称为微调电位器。这是因为它们有一个调节螺钉并且是电位器。螺钉调节组件提供的电阻。合格的服务人员可以执行调整。服务人员必须有一个功能齐全的测试设备，以便在调整螺钉时监控电压。进行适当调整后，用几滴液体覆盖螺钉，该液体会迅速硬化并防止螺钉移动。液体不会损坏组件，并且可以剥离以允许维修人员进行更多调整。如果主板安装在另一个驱动器中或将其他组件添加到驱动器中，则可能会发生这种情况。

切勿将主板强行插入机架或强行固定拉杆。如果主板不容易滑入机架，请将主板重新定位在模块化连接器上，然后轻轻按下。如果正确对齐，模块化连接器将滑入机架中的匹配连接器。

当驱动器通电时，板上的 LED 将亮起几秒钟。这可以作为证明 LED 正常工作的测试。

DS3800HCVA1J1H 模拟输出板 GE 具有模块化连接器

Product description

The GE Digital to analog output board DS3800HCVA1J1H features modular connectors for connection to the driver and a retaining rod for securing the board in the driver. The GE digital to analog output board DS3800HCVA1J1H is also equipped with 14 jumpers and 2 amber indicator leds. The board also has 3 connectors accessible from the front of the board and 4 trimmer resistors.

Trimmer resistors are often called trimmer potentiometers. This is because they have a regulating screw and are potentiometers. Screws adjust the resistance provided by the assembly. Adjustments can be made by qualified service personnel. The service personnel must have a fully functional test device to monitor the voltage while adjusting the screws. After making the appropriate adjustments, cover the screw with a few drops of liquid, which will quickly harden and prevent the screw from moving. The liquid does not damage the component and can be stripped to allow maintenance personnel to make more adjustments. This can happen if the motherboard is installed in another drive or if other components are added to the drive.

Do not force the motherboard into the rack or secure the tie rod. If the motherboard does not slide easily into the rack, reposition the motherboard on the modular connector and gently press down. If aligned correctly, the modular connector will slide into the matching connector in the rack.

When the driver is powered on, the LED on the board will light up for a few seconds. This can be used as a test to prove that the LED is working properly.
