GE DS3800HDID1A1A  电阻器 十六组跳线端口

GE DS3800HDID1A1A  电阻器 十六组跳线端口

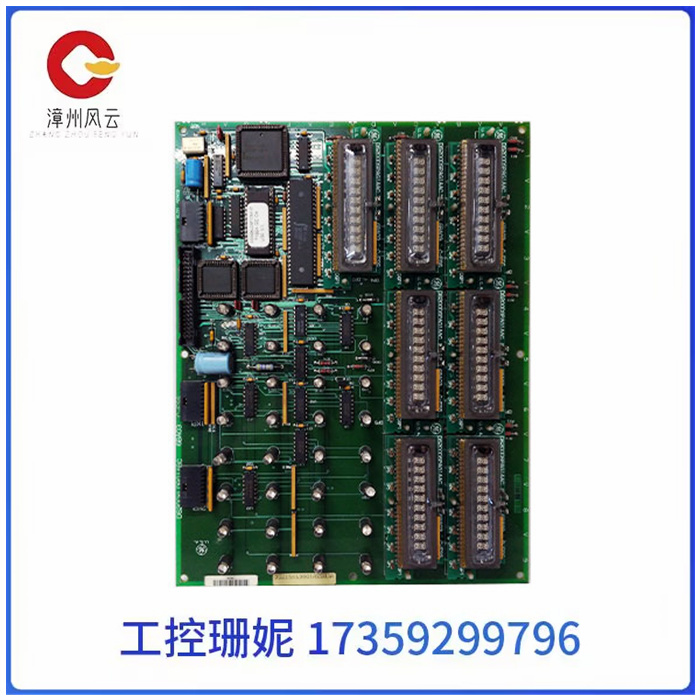

DS3800HDID1A1A是通用电气（GE）创建的Mark IV（Speedtronic）系列的一部分。大约有十六组跳线端口。跳线端口带有一个塑料盖，可以放置在跳线端口组上，也可以根本不使用。这些盖子允许操作员调整能量电流在电路板周围的移动方式。DS3800HRTA1A1A具有各种二极管，这些二极管只允许能量单向移动。有两个淡蓝色二极管，两个蓝绿色二极管，十三个透明二极管和八个黑色二极管。有四个指示灯。

当电流流过LED时，LED将点亮红色。DS3800HDID1A1A大约有二十个电阻器。每个电阻器都有不同的彩色标记来表示其能量容量。DS3800HRTA1A1A有四个点（每个角一个），用于将DS3800HDID1A1A固定到位。DS3800HDID1A1A有一个女性端口和两个男性端口。这些端口有助于DS3800HDID1A1A与系统中的其他电路板相关联。

DS3800HDID1A1A有两个米色电容器，有五个深色电容器。DS3800HDID1A1A是三十六个集成电路。集成电路也称为EPROM和EEPROM，它们保存DS3800HRTA1A1A的所有信息。EEPROM已编程。EPROM在要更新的设备的水平外部使用一个轻微的环形点（这些环形点也是识别EEPROM和EPROM的一种简单方法）。DS3800HRTA1A1A有一个灰色的正方形，称为晶体振荡器，用来产生非常精确的频率。

GE DS3800HDID1A1A  电阻器 十六组跳线端口

DS3800HDID1A1A is part of the Mark IV (Speedtronic) family created by General Electric (GE). There are about sixteen sets of jumper ports. The jumper port comes with a plastic cover that can be placed on the jumper port group or not used at all. These covers allow the operator to adjust how the energy current moves around the circuit board. The DS3800HRTA1A1A has a variety of diodes that allow energy to move in only one direction. There are two light blue diodes, two blue-green diodes, thirteen clear diodes and eight black diodes. There are four lights.

When the current flows through the LED, the LED will light up red. The DS3800HDID1A1A has about twenty resistors. Each resistor has a different color label to indicate its energy capacity. The DS3800HRTA1A1A has four points (one for each corner) that are used to hold the DS3800HDID1A1A in place. The DS3800HDID1A1A has one female port and two male ports. These ports help the DS3800HDID1A1A relate to other boards in the system.

The DS3800HDID1A1A has two beige capacitors and five dark capacitors. DS3800HDID1A1A is thirty-six integrated circuits. Integrated circuits, also known as EPROM and EEPROM, hold all the information of DS3800HRTA1A1A. The EEPROM is programmed. Eproms use a slight ring point on the horizontal outside of the device to be updated (these ring points are also an easy way to identify an EEPROM and an EPROM). The DS3800HRTA1A1A has a gray square called a crystal oscillator that is used to produce very precise frequencies.

GE DS3800HDID1A1A  电阻器 十六组跳线端口
