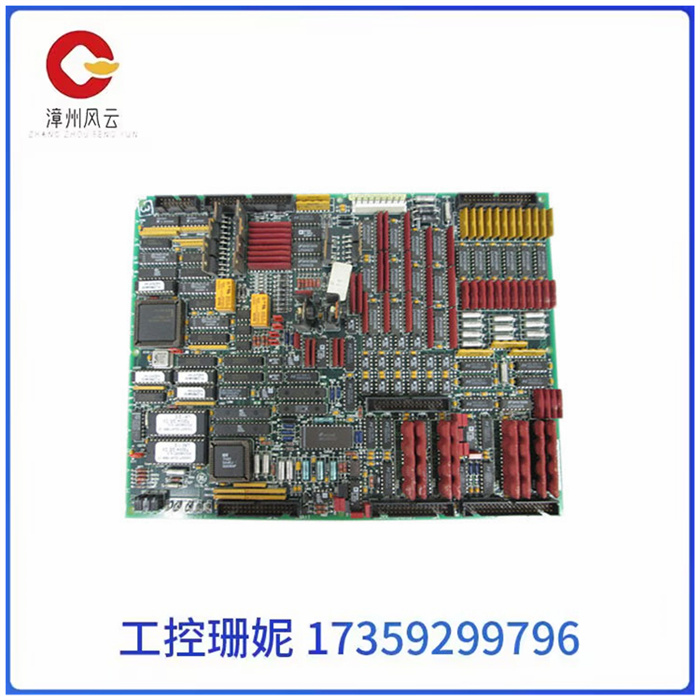

GE DS3800HDRA1B 接收板  具有一个模块化连接器

GE DS3800HDRA1B 接收板  具有一个模块化连接器

产品描述

GE Line 驱动器/接收器板DS3800HDRA1B1B具有模块化连接器，用于连接到驱动器和固定杆，用于将板固定在驱动器中。GE线路驱动器/接收器板DS3800HDRA1B1B还装有2个跳线和多个电容器。该板还具有 2 个 40 针连接器，可从板前部访问。

电路板上的另一个组件是晶体管到晶体管逻辑 （TTL） 器件。它用作集成电路之间的接口逻辑。

该板的 1 端装有模块化连接器。模块化连接器设计用于与驱动器中主板机架背面的另一个模块化连接器连接。2 个模块化连接器满足并提供许多信号和电源连接。从驱动器上卸下主板后，连接将停止，无需服务商干预。也就是说，只需卸下电路板即可结束信号和电源连接。模块化连接便于电路板接收命令信号进行处理。模块化连接还为电路板提供了向驱动器中的其他板发送命令信号的方法。在正常处理过程中，电路板多次发送和接收信号以控制电机和运动部件。

电路板的另一侧是固定杆。它们可装入板架上的插槽中，并将板锁定在架子中。它们防止电路板移动以保护组件.它们还保持模块化连接器之间的连接。

GE DS3800HDRA1B 接收板  具有一个模块化连接器

Product description

The GE Line driver/receiver board DS3800HDRA1B1B has modular connectors for connection to the drive and a retaining rod for securing the board in the drive. The GE line driver/receiver board DS3800HDRA1B1B also has 2 jumpers and multiple capacitors. The board also has 2 40-pin connectors that can be accessed from the front of the board.

Another component on the board is a transistor-to-transistor logic (TTL) device. It serves as the interface logic between integrated circuits.

One end of the board is equipped with a modular connector. The modular connector is designed to connect to another modular connector on the back of the motherboard rack in the driver. 2 modular connectors meet and provide many signal and power connections. After removing the motherboard from the drive, the connection will stop without vendor intervention. In other words, just remove the circuit board to end the signal and power connection. The modular connection allows the circuit board to receive command signals for processing. Modular connections also provide a way for the board to send command signals to other boards in the driver. During normal processing, the circuit board sends and receives signals several times to control the motor and moving parts.

On the other side of the board is a holding rod. They fit into slots in the board frame and lock the board into the shelf. They prevent the board from moving to protect the components. They also maintain connections between modular connectors.

GE DS3800HDRA1B 接收板  具有一个模块化连接器
