产品描述

通用电气（GE）的DS3800HDRC1A1A电路板是作为Speedtronic Mark IV涡轮机控制系列的一部分创建的。DS3800HDRC1A1A电路板是线路驱动器/接收器电路板。

线路驱动器电路板是一种用于驱动负载（例如传输线）的电子放大器电路。

DS3800HDRC1A1A电路板包含二十四 （24） 个标记为 U1 到 U24 的黑色集成电路。有二十五 （25） 个黄色小电容器散布在整个电路板周围。还有一 （1） 个较大的银电容器和一 （1） 个较大的橙色电容器。主板沿主板一侧有两 （2） 个标有 JA 和 JB 的蓝色插孔连接器端口。在两 （218） 个连接器端口之间是两个标有 TP4637 和 TP4 的测试点。该DS2HDRC1A2A还具有二十六 （3800） 个小型彩色条纹电阻器。位于电路板边缘之一的是一个长长的黑色连接器端口，标有数字十 （1） 到八十 （1），增量为 26。电路板还有两 （10） 个标记为 J80 和 J2 的红色跳线.电路板在顶部边缘用字母 A 到 J 标记。

Mark IV系统是数十年来技术创新和改进的产物。

DS3800HDRC1A1A隔离板GE 双差分集成电路

Product description

The General Electric (GE) DS3800HDRC1A1A circuit board was created as part of the Speedtronic Mark IV turbine control family. The DS3800HDRC1A1A circuit board is a line driver/receiver circuit board.

A line driver board is an electronic amplifier circuit used to drive a load, such as a transmission line.

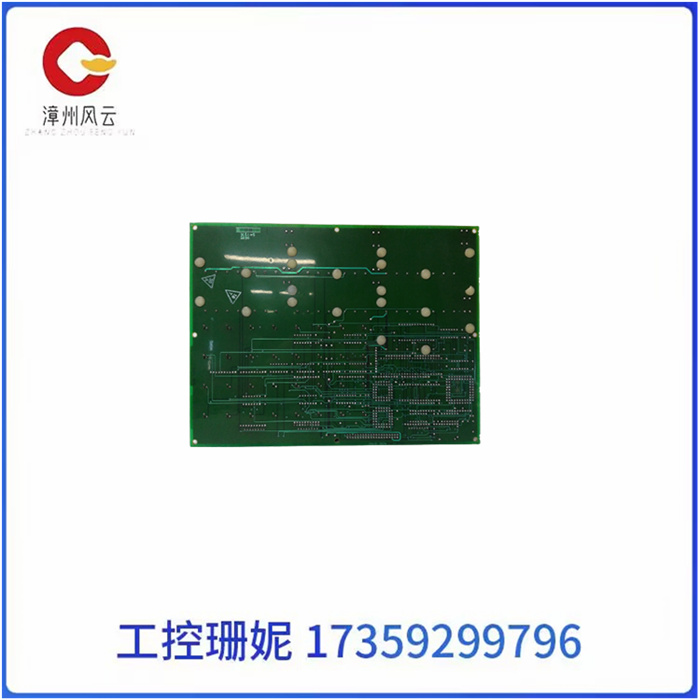

The DS3800HDRC1A1A board contains twenty-four (24) black integrated circuits labeled U1 through U24. There are twenty-five (25) small yellow capacitors scattered around the entire circuit board. There is also one (1) larger silver capacitor and one (1) larger orange capacitor. The motherboard has two (2) blue jack connector ports labeled JA and JB along the motherboard side. Between the two (218) connector ports are two test points labeled TP4637 and TP4. The DS2HDRC1A2A also has twenty-six (3800) small color stripe resistors. Located on one of the edges of the board is a long black connector port marked with the numbers ten (1) to eighty (1) in increments of 26. The board also has two (10) red jumpers labeled J80 and J2. The board is marked on the top edge with letters A through J.

The Mark IV system is the product of decades of technological innovation and improvement.
