GE DS3800HFPB1F1E  用于涡轮控制的处理器板

GE DS3800HFPB1F1E  用于涡轮控制的处理器板

产品描述

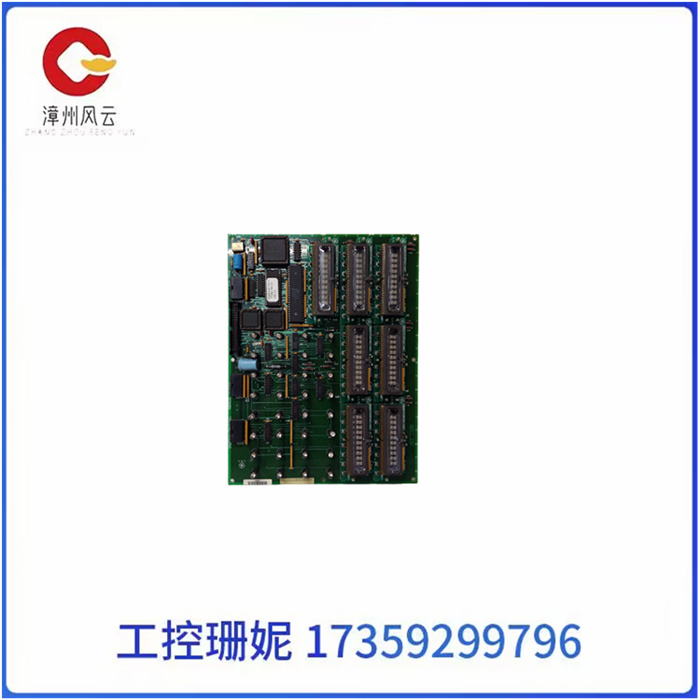

DS3800HFPB1F1E是用于涡轮机控制的处理器板。它是Mark IV系列涡轮机控制装置的一部分。通用电气创建了Mark系列来处理涡轮机的各个方面，以确保正确运行和安全性。

主板侧面是一个黑色连接器端口。黑色四十针公连接器端口可用于将电路板连接到另一个电气元件.电路板上到处都是许多集成电路。这些集成电路包含几种不同类型的电路元件。微型电容器、电阻器、二极管和其他器件位于每个集成电路上。整个电路板上都有几个蓝色的小电容器。

电容器，也称为冷凝器或冷凝器，是在电场中存储势能的电气元件。在电路板的一边缘对齐的是八 （8） 个带有红色指示灯的发光二极管.二极管是在一个方向上传导能量的电气元件。它们在一个方向上具有低电阻，在另一个方向上具有高电阻。发光二极管可以执行许多功能，包括提醒操作员设备存在问题。在电路板的右侧是四 （4） 个带有蓝色跳线引脚的跳线 这些跳线可用于连接两个引脚并在它们之间建立电气连接。

GE DS3800HFPB1F1E  用于涡轮控制的处理器板

Product description

The DS3800HFPB1F1E is a processor board for turbine control. It is part of the Mark IV series turbine control unit. Ge created the Mark Series to handle every aspect of the turbine to ensure proper operation and safety.

On the side of the motherboard is a black connector port. The black forty pin male connector port can be used to connect the board to another electrical component. There are many integrated circuits all over the board. These integrated circuits contain several different types of circuit elements. Micro-capacitors, resistors, diodes and other devices are located on each integrated circuit. There are small blue capacitors all over the board.

Capacitors, also known as condensers or condensers, are electrical components that store potential energy in an electric field. Aligned on one edge of the board are eight (8) light-emitting diodes with red leds. A diode is an electrical component that conducts energy in one direction. They have low resistance in one direction and high resistance in the other. Leds can perform a number of functions, including alerting the operator that there is a problem with the device. On the right side of the board are four (4) jumpers with blue jumper pins that can be used to connect the two pins and create an electrical connection between them.

GE DS3800HFPB1F1E  用于涡轮控制的处理器板
