DS3800HFPC1L1H MK IV系列 GE 功能处理器板

DS3800HFPC1L1H MK IV系列 GE 功能处理器板

产品描述

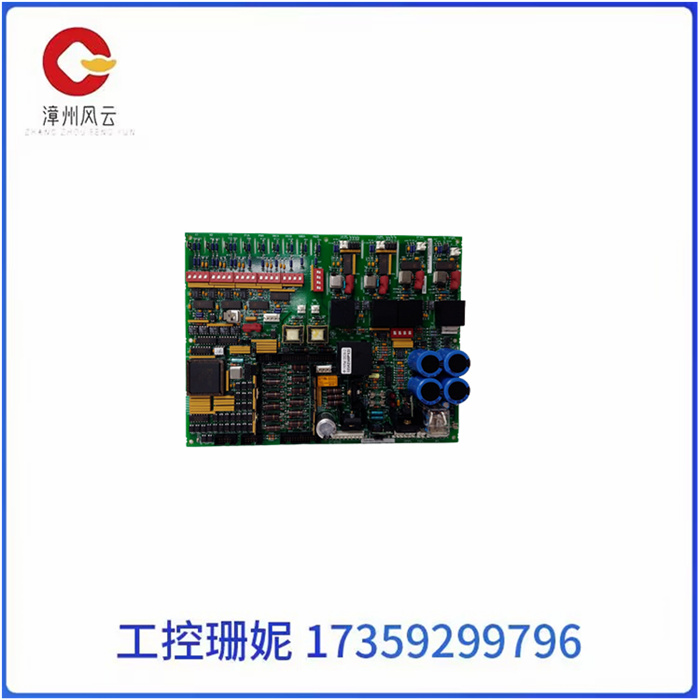

GE 功能处理器板DS3800HFPC1L1H具有用于连接到驱动器的模块化连接器和用于将主板固定在驱动器中的固定杆。GE功能处理器板DS3800HFPC1L1H还装有8个跳线和多个电容器。该板还具有 1 个 40 针连接器，可从板正面访问。它还具有用于连接子卡的支架。

电路板上的另一个组件是晶体管到晶体管逻辑 （TTL） 器件。它用作集成电路之间的接口逻辑。

安装电路板的最后一步是将带状电缆连接到电路板上的 40 针连接器。当主板安装在机架中时，安装程序可以访问连接器。连接器位于 2 个固定拉杆之间。它们将电路板固定在机架中，并牢固地连接 2 个模块化连接器。板上嵌入了 1 个模块化连接器。另一个位于主板机架后部的驱动器内。当您将电路板插入机架时，2 个模块化连接器相遇并形成连接。锁定固定杆时，模块化连接器将牢固就位。

要安装带状电缆，请握住塑料连接器的末端，并在带状电缆中保持松弛。将其与板上的连接器对齐，然后将其压入连接器中。在连接中寻找空间，然后再次将两个连接器压在一起。握住塑料接头将电缆拉出。如果握住带状电缆拉出带状电缆，可能会损坏带状电缆。

DS3800HFPC1L1H MK IV系列 GE 功能处理器板

Product description

The GE functional processor board DS3800HFPC1L1H has a modular connector for connecting to the drive and a retaining rod for attaching the motherboard to the drive. The GE functional processor board DS3800HFPC1L1H also has eight jumpers and multiple capacitors. The board also has a 40-pin connector that can be accessed from the front of the board. It also has a bracket for connecting the daughter card.

Another component on the board is a transistor-to-transistor logic (TTL) device. It serves as the interface logic between integrated circuits.

The final step in installing the board is to connect the ribbon cable to the 40-pin connector on the board. When the motherboard is mounted in the rack, the installer can access the connector. The connector is located between two fixed tie rods. They secure the board in the rack and securely connect 2 modular connectors. A modular connector is embedded in the board. The other is located in the drive at the rear of the motherboard rack. When you insert the board into the rack, 2 modular connectors meet and form a connection. The modular connector is firmly in place when the rod is locked.

To install the ribbon cable, hold the end of the plastic connector and keep it loose in the ribbon cable. Align it with the connector on the board and press it into the connector. Look for space in the connection, then press the two connectors together again. Hold the plastic connector and pull the cable out. If you hold the cable and pull it out, the cable may be damaged.

DS3800HFPC1L1H MK IV系列 GE 功能处理器板
