产品描述

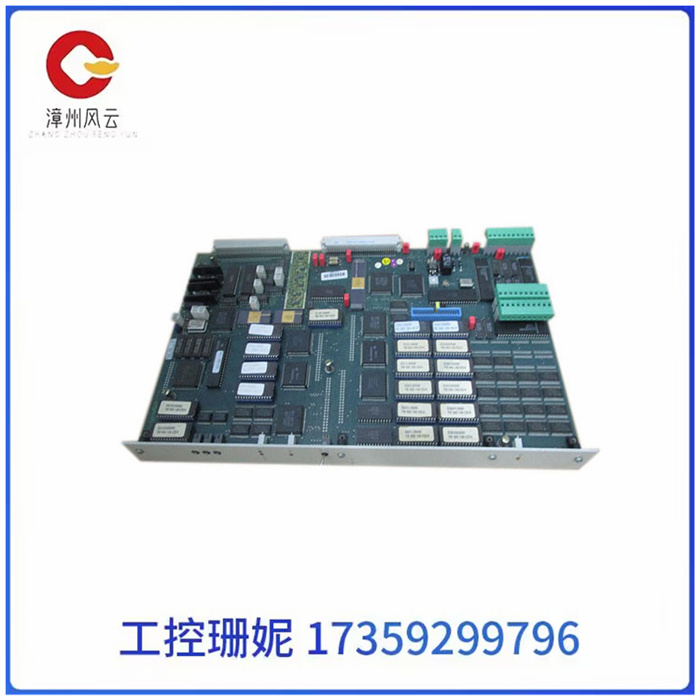

GE驱动器控制板DS3800HFPG1D1C具有用于连接到驱动器的模块化连接器和用于将板固定在驱动器中的固定杆。GE驱动控制板DS3800HFPG1D1C还装有微处理器和多个可擦除可编程只读（EPROM）模块。该板有 1 个 34 针连接器，可从板正面访问。它还在电路板表面安装了测试点和 1 个 40 针连接器。

电路板上的另一个组件是晶体管到晶体管逻辑 （TTL） 器件。它用作集成电路之间的接口逻辑。由于 GE 驱动控制板DS3800HFPG1D1C在板机架中具有专用位置，并且占用双倍宽度，因此在安装或拆卸时必须小心。携带板子时用两只手，并且只能从板的侧面边缘携带。这可以保护组件免受意外损坏。您的手指可能会弯曲图钉和其他组件。引脚和组件可能会意外从电路板上折断。

连接要连接到电路板的任何带状电缆，并排列带状电缆，以免阻塞微处理器周围的气流。将主板滑入机架，直到模块化连接器接触机架背面的模块化连接器。用拇指将电路板压入模块化连接器。然后按下拉杆将主板锁定在机架中。最后，将带状电缆连接到可从电路板正面访问的连接器。

GE DS3800HFPG1D1C 驱动器 模拟 I/O 板

Product description

The GE drive control board DS3800HFPG1D1C has a modular connector for connecting to the drive and a retaining rod for securing the board to the drive. The GE drive control board DS3800HFPG1D1C also houses a microprocessor and multiple erasable programmable read-only (EPROM) modules. The board has a 34-pin connector that can be accessed from the front of the board. It also has test points and a 40-pin connector mounted on the board surface.

Another component on the board is a transistor-to-transistor logic (TTL) device. It serves as the interface logic between integrated circuits. Because the GE drive control board DS3800HFPG1D1C has a dedicated position in the board frame and occupies double the width, care must be taken when installing or removing it. The board is carried with two hands and can only be carried from the side edge of the board. This protects the components from accidental damage. Your fingers may bend thumbtacks and other components. Pins and components can accidentally snap off the board.

Connect any ribbon cables to be connected to the circuit board, and arrange the ribbon cables so as not to block the airflow around the microprocessor. Slide the motherboard into the rack until the modular connector touches the modular connector on the back of the rack. Press the circuit board into the modular connector with your thumb. Then press down on the pull rod to lock the motherboard in the rack. Finally, connect the ribbon cable to a connector that can be accessed from the front of the board.
