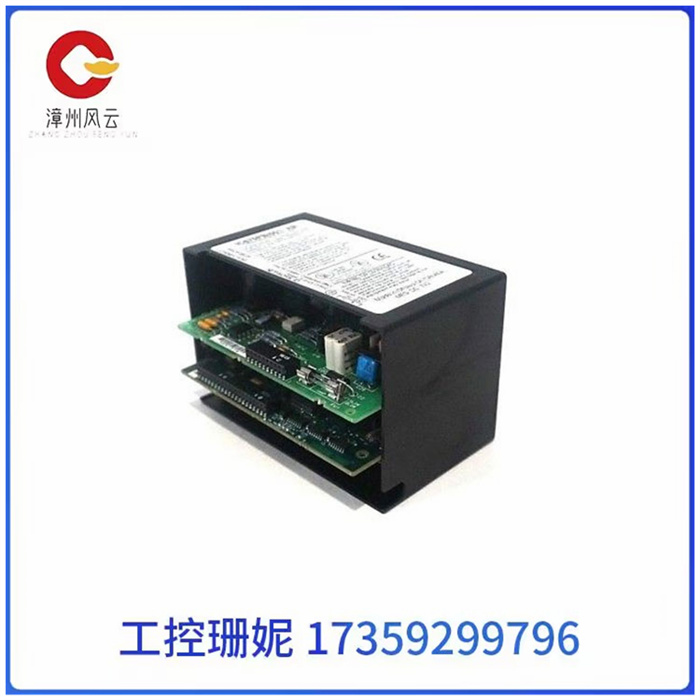

IC670PBI001是一个Profibus接口单元，是GE发那科现场控制系列的一部分。该电气设备安装在总线接口端子座上，由外部24 VDC供电电压供电。它允许现场控制I/O模块通过Profibus网络与GE CPU模块交换数据，实现高速、分布式I/O架构。

IC670PBI001配备两个9针d壳连接器，其中一个端口作为手持编程器(HHP)端口，用于下载和监控IC670PBI001，另一个端口作为网络接口端口，通过Profibus网络以9.6、19.2、93.75、187.5、500、1500 Kbits、3 Mbits、6 Mbits和12 Mbits的标准数据传输速度进行通信。该端口需要使用屏蔽双绞线或Belden#9463电缆作为Profibus网络物理介质。该端口支持Profibus线性拓扑或Daisy-chain连接，网络的第一个和最后一个节点由电阻终止。最多8个现场控制I/O模块可由单个IC670PBI001托管。

IC670PBI001安装在BIU(Bus Interface Unit)端子排上工作。该端子座提供安装组件，允许模块组件安装在DIN导轨上。它还支持通过BIU端子座提供的安装标签来安装面板。

为了配置该模块的节点地址，它附带了一组拨码开关，这些拨码开关位于IC670PBI001的Profibus网络接口上。这是一个八(8)拨码开关阵列，用于配置地址00-32。

现场控制IC670PBI001 Profibus总线接口单元属于GE发那科现场控制系列的模块化和分布式I/O模块和控制产品。它与各种主机体系结构兼容。该模块作为任何现场控制PLC系统的核心。IC670PBI001 Profibus总线接口单元提供I/O扫描功能和智能处理，以及最多8个I/O模块的组功能配置，以构建高效的现场控制站系统。该现场控制设备的一些特点包括适应广泛网络的开放式结构，易于布线过程，对备件的需求最小，DIN导轨安装设施，以及易于安装和维护过程。

IC670PBI001 Profibus总线接口单元用于Profibus I/O与现场控制I/O模块的接口。它还为整个设备、I/O模块和继电器提供了内置的诊断设施。总线接口模块端子座用于挂载总线接口模块。可以在不改变接线和重新配置控制站的情况下拆卸或更换模块。IC670PBI001 Profibus总线接口单元还提供了智能处理功能，如可选择的I/O默认值、模拟范围选择、故障报告和模拟缩放。它可以安装在面板内、操作站后面、接线盒内以及空间有限的位置。用户可以将设备安装在NEMA框中。该模块很小，具有坚固的铝制外壳的坚固设计。建议采用外接24v直流电源供电，输入电源线采用可更换的慢吹保险丝，无需更换接线。

IC670PBI001 接口模块 GE 传感器模块

The IC670PBI001 is a Profibus interface unit that is part of GE Fanuc's field control family. The electrical device is installed on the bus interface terminal block and is powered by an external 24 VDC supply voltage. It allows field control I/O modules to exchange data with GE CPU modules over a Profibus network, enabling a high-speed, distributed I/O architecture.

The IC670PBI001 is equipped with two 9-pin D-shell connectors, with one port serving as a handheld programmer (HHP) port for downloading and monitoring the IC670PBI001 and the other port serving as a network interface port. Communication is carried out over the Profibus network at standard data transfer speeds of 9.6, 19.2, 93.75, 187.5, 500, 1500 Kbits, 3 Mbits, 6 Mbits and 12 Mbits. This port requires the use of shielded twisted pair or Belden#9463 cable as the Profibus network physical media. This port supports Profibus linear topology or Daisy-chain connections, where the first and last nodes of the network are terminated by resistors. Up to 8 field control I/O modules can be hosted by a single IC670PBI001.

The IC670PBI001 works on the Bus Interface Unit (BIU) terminal block. The terminal block provides mounting assemblies that allow module assemblies to be mounted on DIN rails. It also supports mounting the panel via the mounting label provided by the BIU terminal block.

To configure the node address of the module, it comes with a set of dip switches located on the Profibus network interface of the IC670PBI001. This is an array of eight (8) dip switches for configuring addresses 00-32.

Field control The IC670PBI001 Profibus bus interface unit is part of GE Fanuc's family of modular and distributed I/O modules and control products. It is compatible with various host architectures. This module serves as the core of any field control PLC system. The IC670PBI001 Profibus Bus interface unit provides I/O scanning capabilities and intelligent processing, as well as group functional configuration of up to 8 I/O modules to build efficient field control station systems. Some of the features of this field control unit include an open construction for extensive networks, easy wiring processes, minimal need for spare parts, DIN rail mounting facilities, and easy installation and maintenance processes.

IC670PBI001 Profibus Bus interface unit is used to interface Profibus I/O with field control I/O module. It also provides built-in diagnostic facilities for the entire device, I/O modules and relays. Bus interface module terminal block is used to mount bus interface modules. Modules can be removed or replaced without changing the wiring and reconfiguring the control station. The IC670PBI001 Profibus Bus interface unit also provides intelligent processing functions such as selectable I/O defaults, analog range selection, fault reporting, and analog scaling. It can be installed inside the panel, behind the operating station, inside the junction box, and where space is limited. You can install the device in the NEMA enclosure. The module is small and has a rugged design with a sturdy aluminum housing. It is recommended to use an external 24v DC power supply, and the input power cable uses a replaceable slow-blowing fuse.
