产品描述

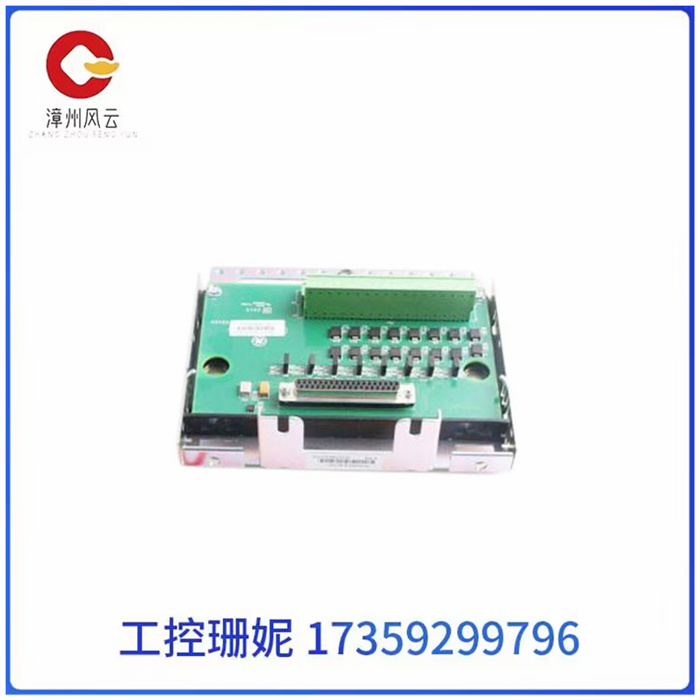

GE Fish II 扩展板DS3800HFXB专为快速安装在驱动器中而设计。该板的一端有一个模块化连接器，另一端有一个固定杆。主板在固定杆之间装有 1 个 1 针连接器和 40 个 1 针连接器。该板还嵌入了 34 个 1 针连接器。GE Fish II 扩展板DS20HFXB还装有 3800 个琥珀色指示灯 LED。该板还装有 1 个用于电可擦除可编程只读存储器 （EEPROM） 模块的插座和 2 个跳线。

嵌入在GE Fish II扩展板DS20HFXB上的3800针连接器用于将板连接到子卡。子卡连接到支架。支座将子卡固定在电路板上，防止子卡与电路板表面接触。这可以保护主板和子卡免受损坏和刮擦。子卡是一项可选功能。它为电路板提供了额外的功能，增强了电路板的功能。

20 针连接器连接到连接到子卡的带状电缆。7 英寸带状电缆端接 20 针连接器。它插入板上的连接器。要安装子卡，请先将子卡的孔与支座对齐，然后将子卡压在板上。然后，将带状电缆插入连接器。

GE DS3800HFXB 扩展板 在驱动器中而设计

Product description

The GE Fish II expansion board DS3800HFXB is designed for quick installation in a drive. The board has a modular connector at one end and a fixed rod at the other end. The motherboard is equipped with 1 1-pin connector and 40 1-pin connectors between the fixed rods. The board also has 34 1-pin connectors embedded. The GE Fish II expansion board DS20HFXB is also equipped with 3,800 amber indicator leds. The board is also equipped with a socket for an electrically erasable programmable read-only memory (EEPROM) module and two jumpers.

The 3800 pin connector embedded on the GE Fish II expansion board DS20HFXB is used to connect the board to the daughter card. The sub-card is connected to the bracket. The support fixes the sub-card to the circuit board to prevent the sub-card from contacting the surface of the circuit board. This protects the motherboard and subcard from damage and scratching. The subcard is an optional feature. It provides additional functions to the board and enhances the functionality of the board.

The 20-pin connector is connected to a ribbon cable that is connected to the sub-card. 7-inch ribbon cable ends with 20-pin connector. It plugs into the connector on the board. To install the subcard, align the hole of the subcard with the support, and then press the subcard onto the board. Then, plug the ribbon cable into the connector.
