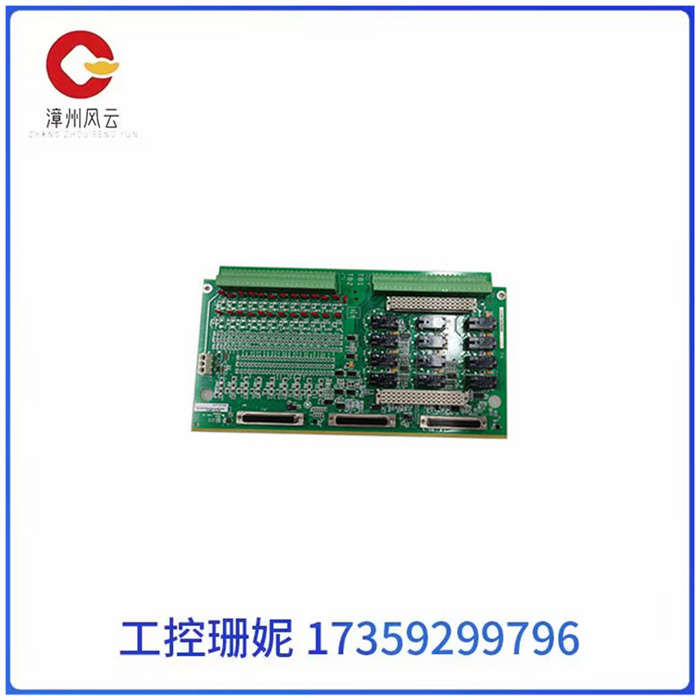

产品描述

该DS3800HMPF1E1F是通用电气Mark IV Speedtronic系统的一部分。Mark IV是通用电气发布的较晚的Speedtronic涡轮机控制系统之一，也是第一个提供三重模块化冗余分布式控制系统的系统。此控制架构依赖于三个相同的控制器板，其中DS3800HMPF1E1F是一个版本，在用于控制或显示目的之前对所有数据进行投票。

DS3800HMPF1E1F是Mark IV最早可用的控制器之一。它基于英特尔 8086 微处理器芯片构建。该芯片是对早期微处理器的明显改进，包括浮点性能。该芯片的时钟频率从5 MHz到10 MHz不等（取决于其生产时间）。该芯片还提供 16 位或 8 位周期的数据传输。

DS3800HMPF1E1F可接受可选的辅助板。它使用插入位于主板中心的垂直引脚连接器的带状电缆与主板通信。其他连接器包括前板边缘的直角连接器和位于其后边缘的背板。前缘还配有提取夹、跳线开关和几个 LED 指示灯。在安装新组件期间，应注意可配置的硬件设置，并将其从旧板复制到替换板。

铜陵 GE DS3800HMPF1E1F 实现三相感应电机控制

Product description

The DS3800HMPF1E1F is part of General Electric's Mark IV Speedtronic system. The Mark IV was one of the late Speedtronic turbine control systems released by General Electric and the first to offer a triple modular redundant distributed control system. This control architecture relies on three identical controller boards, of which the DS3800HMPF1E1F is a version that votes on all data before it is used for control or display purposes.

The DS3800HMPF1E1F was one of the first Mark IV controllers available. It is built on the Intel 8086 microprocessor chip. The chip is a clear improvement over earlier microprocessors, including floating-point performance. The chip's clock frequency varies from 5 MHz to 10 MHz (depending on its production time). The chip also offers 16 - or 8-bit cycles of data transmission.

The DS3800HMPF1E1F accepts an optional auxiliary board. It communicates with the motherboard using a ribbon cable that plugs into a vertical pin connector located in the center of the motherboard. Other connectors include right-angle connectors at the edge of the front plate and a backplane located at the back edge. The leading edge is also equipped with an extraction clip, jumper switch and several LED indicators. During the installation of a new component, note the configurable hardware Settings and copy them from the old board to the replacement board.
