产品描述

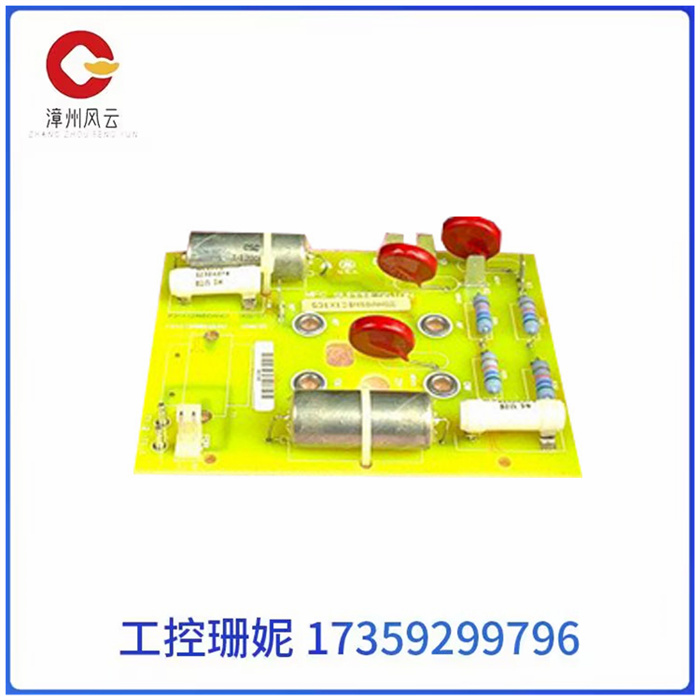

GE 端子板继电器卡 531X111PSHAPG2 提供驱动器使用的 5 V 直流、15 V 直流和 24 V 直流电流。它还具有用于电机磁场电路的脉冲变压器。GE终端板继电器卡531X111PSHAPG2是替代板，设计为仅由合格的安装人员或服务人员安装。由于变频器是高压设备，并且还包含可能造成伤害的移动部件，因此只有经过培训的人员才能维护和维修变频器。

安装设备的过程从检查驱动器周围的区域是否存在危险情况开始。如果驱动器周围区域使用任何延长线，则只能使用接地延长线。用三线代替任何两芯线，以减少触电的机会。驱动器周围的地板必须没有任何水分，并且还要移动任何造成绊倒危险的物品。这将包括工具、电缆和其他设备。

检查该区域的所有三相电源布线，并咨询熟悉现场的人员，以充分了解提供给驱动器的电源。此外，找到并检查用于驱动器的关闭设备。确保紧急关闭处于工作状态，并且在紧急情况下可以轻松到达。

531X111PSHAPG2 板和涡轮控制系列

Product description

GE terminal board relay card 531X111PSHAPG2 provides 5 V DC, 15 V DC, and 24 V DC currents for the driver. It also has a pulse transformer for the motor's magnetic field circuit. GE Terminal Board Relay Card 531X111PSHAPG2 is a replacement board designed to be installed only by qualified installers or service personnel. Because drives are high voltage equipment and also contain moving parts that can cause injury, only trained personnel should maintain and repair drives.

The process of installing the device starts with checking the area around the drive for dangerous conditions. If any extension cords are used in the area around the driver, only a grounded extension cord can be used. Replace any two cores with three wires to reduce the chance of electric shock. The floor around the drive must be free of any moisture, and any items that pose a tripping hazard must also be moved. This will include tools, cables and other equipment.

Check all three-phase power wiring in the area and consult someone familiar with the site to fully understand the power supplied to the drive. Also, locate and check the shutdown device for the drive. Make sure the emergency shutdown is in working condition and easily accessible in case of an emergency.
