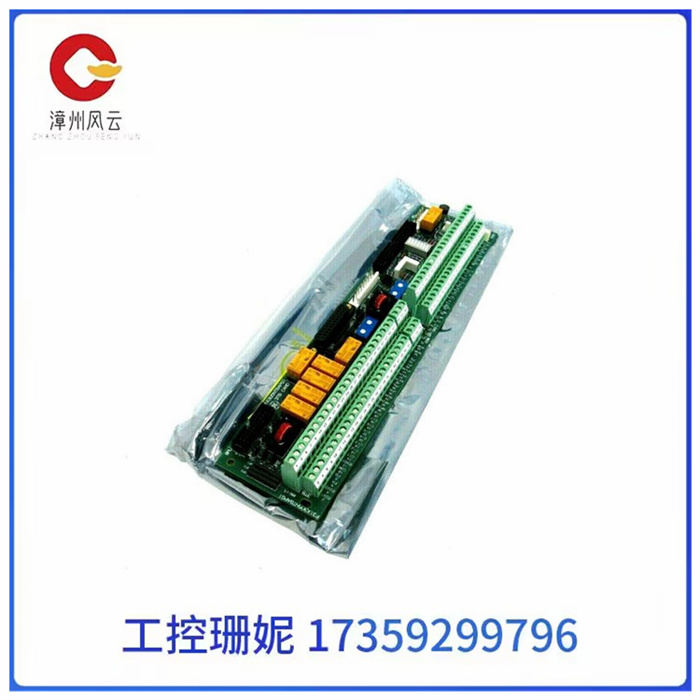

531X111PSHAGG1 dcs卡件模块电源连接卡

531X111PSHAGG1 dcs卡件模块电源连接卡

531X111PSHAGG1 dcs卡件模块电源连接卡

产品描述

531X111PSHAJG1板由通用电气设计为531X替代驱动板。当安装在主机驱动器中时，该卡用作电机磁场控制和电源板。像这样的卡可以安装在GE品牌的许多驱动器柜中。主机所需的电源由此主板提供。该板为 G1 版本构建，交流线路的 MOV 安装在板载而不是外部。

额定电压为 5 VDC、15 VDC 和 24 VDC 均由 531X111PSHAJG1 电源板提供。它还具有为驱动器的电机磁场控制电路供电所需的能量。该源由集成脉冲变压器提供给驱动器。用户可以使用许多校准和调整来适应各种作业负载。系统控制选项可由电路板的三个继电器执行。还包括三个电位计，用于对电流和电路反馈进行必要的校准。五个跳线完善了电路板，并为用户提供了调整和修复板载反馈和电流信号的权限。

从 AX Control 发货的物品采用标准包装在防静电塑料覆盖物中。 用户在卸下 531X111PSHAJG1 板之前，必须彻底检查制造商概述的所有安装参数。系列手册和设备数据表中提供了有关接线和安装此卡的指南。531X系列的所有成员都得到了通用电气的技术支持。

531X111PSHAGG1 dcs卡件模块电源连接卡

Product description

The 531X111PSHAJG1 board was designed by General Electric as a 531X replacement driver board. When installed in the host drive, the card serves as a motor magnetic field control and power board. Cards like this can be installed in many GE branded drive cabinets. The power supply for the host is provided by the motherboard. The board was built for the G1 version, and the MOV for the AC line was installed on-board rather than externally.

Rated voltages of 5 VDC, 15 VDC, and 24 VDC are provided by the 531X111PSHAJG1 power supply board. It also has the energy needed to power the driver's motor field control circuit. The source is supplied to the driver by an integrated pulse transformer. Users can use many calibrations and adjustments to adapt to a variety of job loads. System control options can be performed by three relays on the board. Three potentiometers are also included for the necessary calibration of current and circuit feedback. Five jumpers complete the board and provide the user with the ability to adjust and repair onboard feedback and current signals.

Items shipped from AX Control are packaged standard in an anti-static plastic covering. Users must thoroughly check all installation parameters outlined by the manufacturer before removing the 531X111PSHAJG1 board. Instructions for wiring and installing the card are provided in the series manuals and device data sheets. All members of the 531X series receive technical support from GE.
