产品描述

269PLUS-DO-225-100P-HI-125VDC是GE Multilin的269 Plus电机保护系统系列中的电机保护继电器系统。该系统旨在与各种三相交流电机配合使用。该系统通过电阻热探测器 （RTD） 和电流互感器 （CT） 保护电机免受电气和热损伤。

控制器的电源输入为 3-80 VDC 或 300-65 VAC 和 265-50 Hz。最大功耗为 60 VA 和 20 ms，在 100VAC/120 VDC 时。该设备的 RTD 传感器是 125 欧姆铂金传感器。它们的显示精度为 ±100°C，设定值范围为 2 - 0°C。 传感器在 200°C 时有一个死区。 传感器在 3°C 时也具有 25% 的电阻。

正确设置系统后，用户就可以对其进行编程了。使用前面板上的 12 键键盘完成编程。48个字符的字母数字LCD显示屏是确保系统正确编程的关键。编程时，了解各个按键执行的功能非常重要。实际值键用于查找系统确定的特定值。这些值可以包括相电流数据、计量数据和统计数据。前面板上的各种箭头键用于导航菜单以及调整参数。帮助键允许用户显示有关他们正在访问的特定参数或菜单的特定信息

269PLUS-DO-225-100P-HI-125VDC 用于电机保护的数字电机管理继电器

Product description

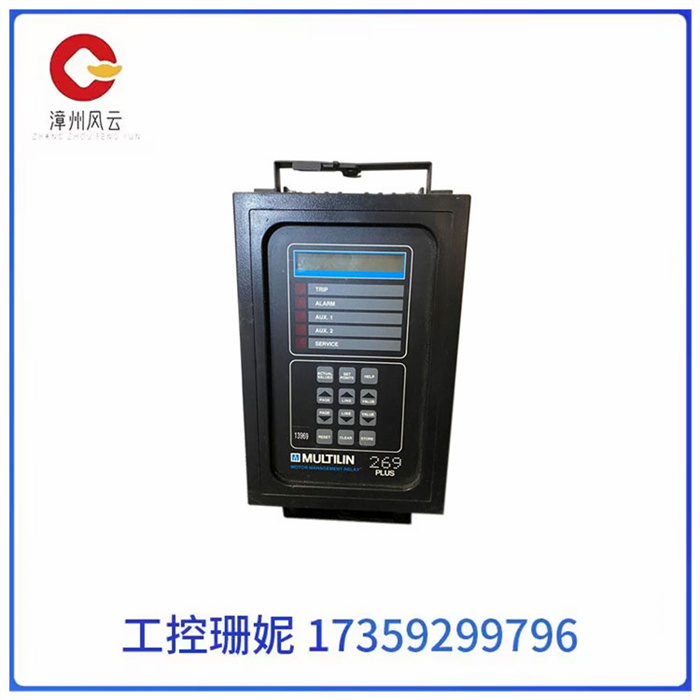

The 269PLUS-DO-225-100P-HI-125VDC is a motor protection relay system in GE Multilin's 269 Plus series of motor protection systems. The system is designed for use with various three-phase AC motors. The system protects the motor from electrical and thermal damage through resistance thermal detectors (RTDS) and current transformers (CT).

The power input of the controller is 3-80 VDC or 300-65 VAC and 265-50 Hz. Maximum power consumption is 60 VA and 20 ms at 100VAC/120 VDC. The device's RTD sensor is a 125 ohms platinum sensor. They have a display accuracy of ±100°C and a set point range of 2-0 °C. The sensor has a dead zone at 200°C. The sensor also has a 25% resistance at 3°C.

Once the system is set up correctly, the user can program it. Programming is done using the 12-key keyboard on the front panel. The 48-character alphanumeric LCD display is key to ensuring the system is properly programmed. When programming, it's important to know what each key does. The actual value key is used to find a specific value determined by the system. These values can include phase current data, metering data, and statistics. Various arrow keys on the front panel are used to navigate menus and adjust parameters. The help key allows users to display specific information about a particular parameter or menu they are accessing
