产品描述

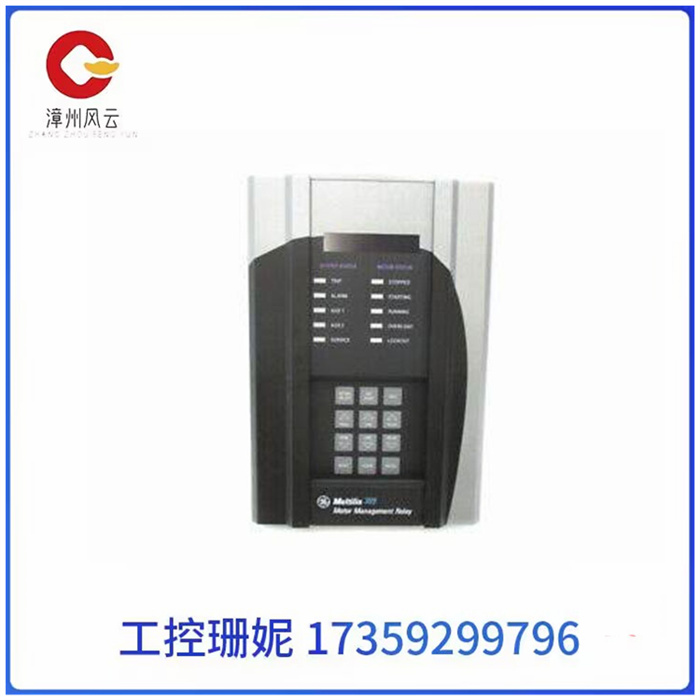

369-HI-R-MO-O-E是通用电气Multilin 369系列电机管理继电器的一部分。这一型号的369，以及它的升级和配件，很快就会停产，处于后一次购买的状态。在产品线停产后，仍可以添加一些升级，例如作为防腐、高温、灰尘和湿度保护层的保形涂层。

Multilin的369-HI-R-M0-O-E旨在保护和控制电机及其附属部件。369通过各种内置功能实现了这一点，其中一些功能包括:

计量:369可以监测电压、瓦特、频率和能星等量，根据生成的值数据生成保护功能。

事件记录:在跳闸后，369能够立即报告跳闸原因，以及跳闸时的温度和数据值，使用户能够分析系统中的问题。

跳闸前警报:369可以在跳闸前通知用户，如果跳闸是由接地故障、机械堵塞、RTD过热等引起的。

电机健康报告:继电器可以使用学习到的信息和系统跳闸历史来确定何时何地需要维护。

示波器:跳闸时触发三个波形记录，并捕获十六个数据周期。在此过程中，相位和接地电流以及触点输入状态都会被捕获。

369-HI-R-MO-O-E继电器所产生的大量数据和保护功能有助于减少故障排除时间和延长系统寿命，使其成为中型电机的佳选择。

369-HI-R-M-0-0-0-0 工控产品PLC/DCS控制模块

Product description

The 369-HI-R-MO-O-E is part of the General Electric Multilin 369 series of motor management relays. This model 369, along with its upgrades and accessories, will soon be discontinued in the latter purchase condition. After the product line is discontinued, some upgrades can still be added, such as conformal coatings that act as protection against corrosion, heat, dust and humidity.

Multilin's 369-HI-R-M0-O-E is designed to protect and control the motor and its accessory parts. The 369 achieves this through a variety of built-in features, some of which include:

Metering: The 369 can monitor the equivalent of voltage, watt, frequency and energy star, and generate protection functions based on the generated value data.

Event logging: Immediately after tripping, 369 reports the cause of the trip, as well as the temperature and data values at the time of tripping, enabling users to analyze problems in the system.

Pre-trip alarm: The 369 can notify the user before tripping if tripping is caused by a ground fault, mechanical blockage, overheating of the RTD, etc.

Motor health reports: Relays can use learned information and system trip history to determine when and where maintenance is needed.

Oscilloscope: Trigger three waveform records when tripping, and capture sixteen data cycles. During this process, the phase and ground current as well as the contact input state are captured.

The large amount of data and protection generated by the 369-HI-R-MO-O-E relay help reduce troubleshooting time and extend system life, making it a good choice for medium-sized motors.
