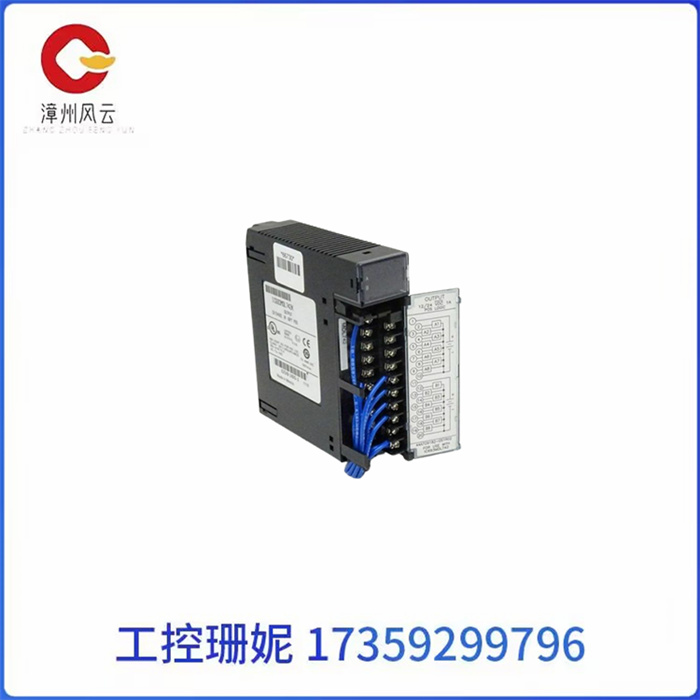

IC693MDL742是一个90-30系列组件模块。该模块特别是一个带有集成电子短路保护(ESCP)的离散输出模块。该模块支持正逻辑接线配置，输出电压范围为12-24 VDC、+20%、-15%。

同样，它的输出电流额定值最大为每点1安培；在50摄氏度时每组最大4安培，在60摄氏度时每组最大3安培。IC693MDL742安装在90-30系列底板上。它占用一个插槽，可以安装到除电源、CPU和专用模块指定安装位置之外的任何空闲插槽中。对于允许的模块实例的数量没有具体的限制。实际限制取决于主机处理器支持的I/O容量、内存大小和可用的底板插槽。

它可以用来激励负载，如电动机启动器、螺线管驱动装置、指示灯、继电器和类似装置。它带有单独的通道指示器，描述输出通道的通电状态。该模块的嵌入式电子短路保护(ESCP)旨在监控每组的公共信号。

如果检测到短路，则“F”LED会亮起，表示短路情况。除了状态指示，ESCP保护电路板免受损坏。当所有输出都通电时，该模块的底板功耗为130 mA。输出通道的典型响应时间最长为2 ms。该模块产生5.2安培的浪涌电流，持续时间为10毫秒，而关断状态下的泄漏电流最大为1毫安。

IC693MDL742美国GE发那科电源控制模块自动化设备逻辑输入

The IC693MDL742 is a 90-30 series module. The module is specifically a discrete output module with integrated electronic Short Circuit Protection (ESCP). The module supports positive logic wiring configuration, and the output voltage range is 12-24 VDC, +20%, and -15%.

Similarly, its output current rating is up to 1 amp per point; Maximum 4 amps per set at 50 degrees Celsius and maximum 3 amps per set at 60 degrees Celsius. The IC693MDL742 is installed on the 90-30 series baseplate. It occupies a slot and can be installed into any free slot except for the installation location specified for power, CPU, and dedicated modules. There is no specific limit on the number of module instances allowed. The actual limit depends on the host processor's supported I/O capacity, memory size, and available backboard slots.

It can be used to excite loads such as motor starters, solenoid drives, indicator lights, relays and similar devices. It comes with a separate channel indicator that describes the energized state of the output channel. The module's embedded Electronic Short Circuit Protection (ESCP) is designed to monitor the public signals of each group.

If a short circuit is detected, the "F" LED lights up to indicate a short circuit. In addition to status indications, ESCP protects the board from damage. When all outputs are powered, the baseboard power consumption of the module is 130 mA. The typical response time of the output channel is up to 2 ms. The module generates a surge current of 5.2 amps for a duration of 10 milliseconds, while the leakage current in the off state is up to 1 mA.
