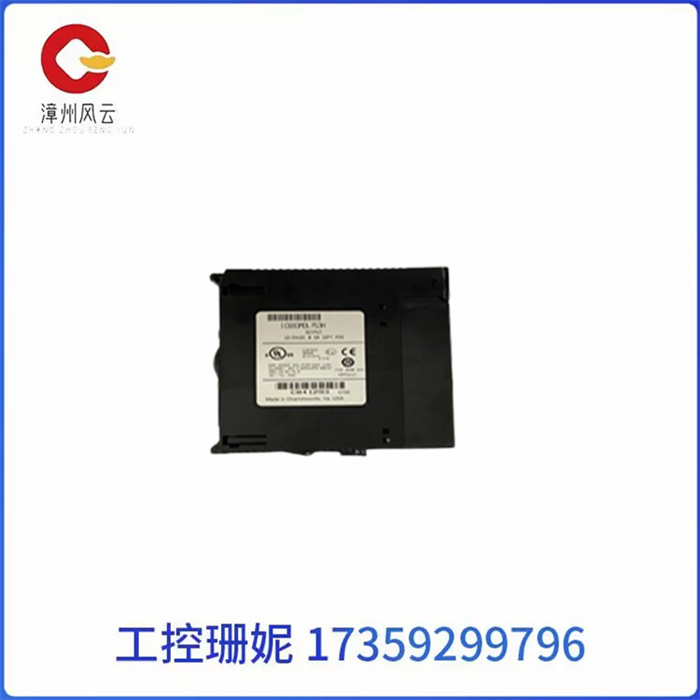

IC693MDL753是90-30系列可编程逻辑控制器(PLC)系列的数字输出模块。该模块有三十二(32)个正逻辑输出通道，产生102 - 28.8的输出电压范围，标称电压为12 - 24 VDC。

IC693MDL753以前由GE Fanuc Automation制造，现已被艾默生自动化收购。该模块带有输出分组，特别是四(4)组，每组八(8)个输出。每个输出组都有250伏的隔离，场侧和逻辑侧或光学隔离之间的电压为100伏。

IC693MDL753的输出电流额定值为每点0.5安培，每组最大4安培，每组公共引脚最大3安培。它产生5.4安培的浪涌电流达10毫秒，而通态压降为0.3 VDC。关断状态下的漏电流为0.1 mA，两种信号转换的开和关响应时间典型值均为0.5 ms，IC693MDL753的内部功耗为260 mA，来自5 VDC背板。IC693MDL753兼容用作本地I/O和分布式I/O模块。它可以安装在机箱的任何可用插槽中，除了指定的CPU、通信适配器和专业模块插槽。

IC693MDL753占用一个插槽，可以根据需要安装任意多个，但受主机控制器I/O容量和内存的限制。对于将电气负载连接到该离散输出模块，推荐的制造商电缆组件为IC693CBL315。

IC693MDL753H GE 诚信服务 DCS控制系统

The IC693MDL753 is a digital output module of the 90-30 series Programmable Logic Controller (PLC) series. The module has thirty-two (32) positive logic output channels that produce an output voltage range of 102-28.8 with a nominal voltage of 12-24 VDC.

The IC693MDL753 was previously manufactured by GE Fanuc Automation and has now been acquired by Emerson Automation. The module comes with output groupings, specifically four (4) groups of eight (8) outputs each. Each output group has a 250 volt isolation, with a voltage of 100 volts between the field side and the logical side or optical isolation.

The IC693MDL753 has an output current rating of 0.5 amps per point, with a maximum of 4 amps per group and 3 amps per group of common pins. It produces a 5.4 amp surge current for 10 milliseconds and a on-state voltage drop of 0.3 VDC. The leakage current in the off state is 0.1 mA, the typical on and off response time for both signal conversions is 0.5 ms, and the internal power consumption of the IC693MDL753 is 260 mA from the 5-VDC backplane. The IC693MDL753 is compatible as both local and distributed I/O modules. It can be installed in any available slot in the case, except for the specified CPU, communication adapter, and specialized module slots.

The IC693MDL753 occupies one slot and can be installed as many as needed, but is limited by the host controller's I/O capacity and memory. For connecting electrical loads to this discrete output module, the recommended manufacturer cable assembly is IC693CBL315.
