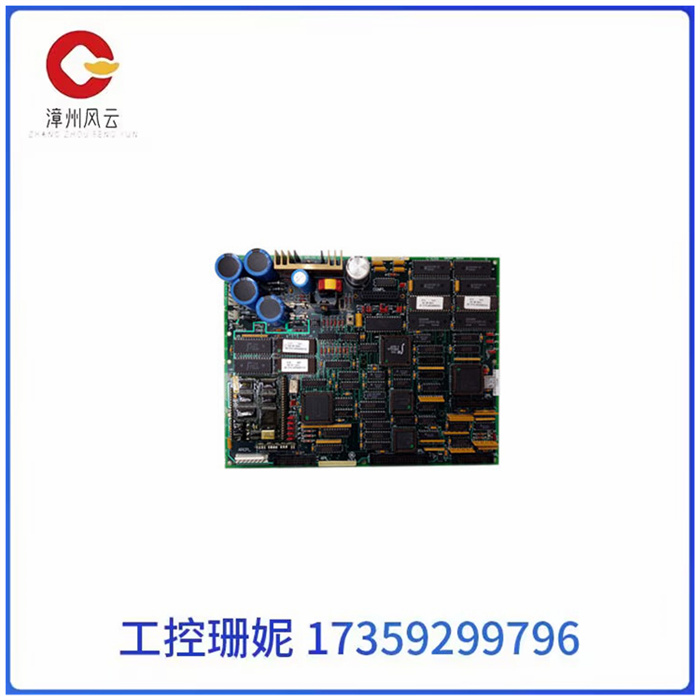

DS215DMCBG1AZZ03A 模拟量输入模块GE/通用电气

DS215DMCBG1AZZ03A 模拟量输入模块GE/通用电气

DS215DMCBG1AZZ03A 模拟量输入模块GE/通用电气

产品介绍

型号名称：DS215DMCBG1AZZ03A

特征

技术指标

通道

双通道

带宽

150MHz

上升时间

≤2.3nS

采样率范围

1GS/s

垂直偏转系数

2mV/div ～5V/div

记录长度

2×512 k

采样率

实时1GS/s 等效50GS/s

扫描时基

2ns~50s/div

触发类型

边沿、脉宽、视频、交替

波形参数自动测量

28种

接口

标准配置：USB Device，USB Host，Pass/Fail，选配：LAN

数学功能

加，减，乘，除，FFT

应用范围

大专院校教学，科研，电子产品生产线，工业控制等

DS215DMCBG1AZZ03A 模拟量输入模块GE/通用电气

Product introduction

Model name: DS215DMCBG1AZZ03A

trait

Technical index

passage

two-channel

bandwidth

150MHz

Rise time

2.3 nS or less

Sampling rate range

1GS/s

Vertical deflection coefficient

2mV/div ~ 5V/div

Record length

2×512 k

Sampling rate

Real-time 1GS/s equivalent to 50GS/s

Scanning time base

2ns~50s/div

Trigger type

Edge, pulse width, video, alternate

Automatic measurement of waveform parameters

28 kinds

port

Standard Settings: USB Device, USB Host, Pass/Fail, Optional: LAN

Mathematical function

Add, subtract, multiply, divide, FFT

Scope of application

College teaching, scientific research, electronic product production line, industrial control, etc
