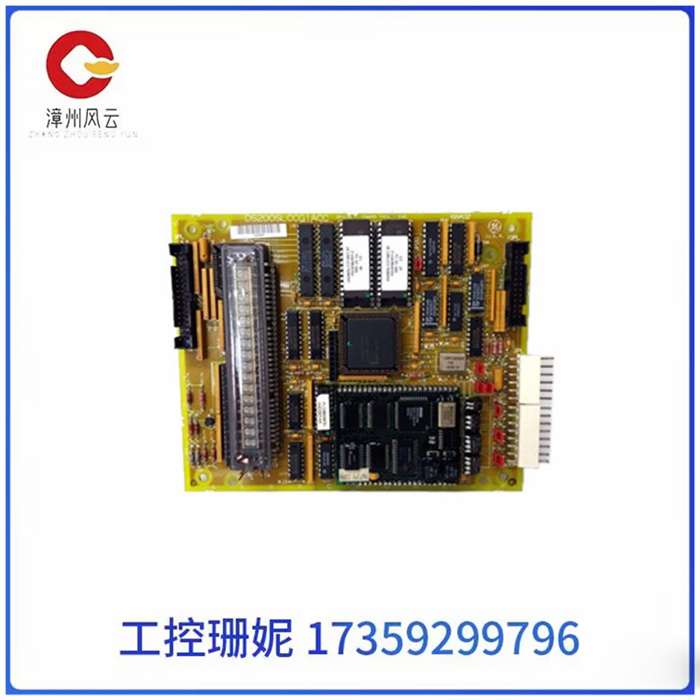

DS200SLCCG1AFG 该板设计用于通用电气的Mark V涡轮控制系统

DS200SLCCG1AFG 该板设计用于通用电气的Mark V涡轮控制系统

DS200SLCCG1AFG 该板设计用于通用电气的Mark V涡轮控制系统

DS200SLCCG1ACC板是通用电气开发的局域网（局域网）通信卡。该卡是作为驱动板Mark V系列的成员制造的。该系列的卡可安装在GE系列的许多驱动器和励磁器中。

该单元专门为主机驱动器提供 LAN 通信所需的处理器。由于它是作为G1版本开发的，因此该卡包括DLAN和ARCNET网络连接所需的电路。

安装DS200SLCCG1ACC板可为主机驱动器提供隔离和非隔离通信电路。 集成的 LAN 控制处理器 （LCP） 是电路板上的关键处理点。LCP 的程序存储器在两个板载 EPROM 存储器模块中可用。使用该板的接口通过板载双端口RAM执行。 LCP 和驱动器连接的驱动器控制板使用此空间来传达信息。该板配有一个可连接的字母数字键盘。连接后，此 16 位显示器可让用户访问系统控制设置和诊断。

DS200SLCCG1AFG 该板设计用于通用电气的Mark V涡轮控制系统

DS200SLCCG1ACC board is a local area network (LAN) communication card developed by General Electric. The card is manufactured as a member of the Mark V series of drive boards. The cards can be installed in many drives and exciters from the GE series.

This unit specifically provides the processor needed for LAN communication with the host drive. Since it was developed as the G1 version, the card includes the circuits needed for DLAN and ARCNET network connectivity.

The DS200SLCCG1ACC board is installed to provide isolated and non-isolated communication circuits for the host driver. The integrated LAN control Processor (LCP) is a critical processing point on the board. The program memory for the LCP is available in two onboard EPROM memory modules. Use the board's interface to execute via onboard dual-port RAM. The LCP and the drive control board connected to the drive use this space to convey information. The board is equipped with a connectable alphanumeric keyboard. When connected, this 16-bit display gives users access to system control Settings and diagnostics.
