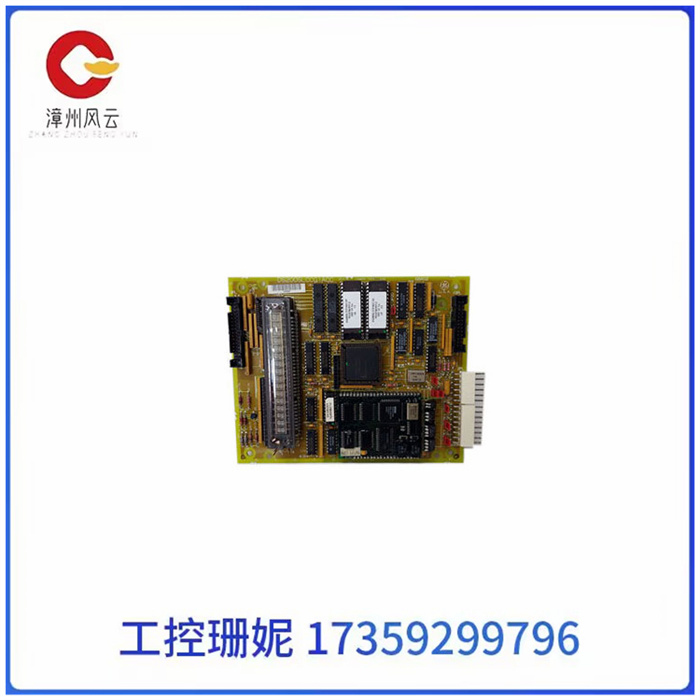

DS200SLCCG1ACC 模拟输入/输出板

DS200SLCCG1ACC 模拟输入/输出板

DS200SLCCG1ACC 模拟输入/输出板

产品描述

DS200SLCCG1ACC：可以使用除标准电阻以外的定制电阻，前提是：i电阻不低于标准电阻警告！切勿使用电阻低于特定驱动/制动斩波器/电阻组合指定值的制动电阻。驱动器和斩波器无法处理由低电阻引起的过电流。

i电阻不限制所需的制动能力，即，i电阻的散热能力（ER）足够应用（见上述步骤3）。制动期间电阻上的电机产生的最大功率，例如1.35·1.2·415VDC（电源电压为380至415VAC时），1.35·1.2·500 VDC。

DS200SLCCG1ACC：计算最大制动功率（Pbr）i在任何十分钟周期内传递的制动能量必须小于或等于在参考制动周期内传递的能量。i.制动功率不得超过额定最大值Pbrmax。

DS200SLCCG1ACC 模拟输入/输出板

Product description

DS200SLCCG1ACC: Custom resistors other than the standard resistors can be used, provided: i resistors are not lower than the standard resistors Warnings! Never use a brake resistor with a resistance lower than the value specified by a specific drive/brake chopper/resistor combination. Drivers and choppers cannot handle overcurrent caused by low resistance.

The i resistor does not limit the required braking capacity, i.e., the heat dissipation capacity (ER) of the i resistor is sufficient for the application (see step 3 above). The maximum power generated by the motor on the resistor during braking, e.g. 1.35·1.2·415VDC (when the supply voltage is 380 to 415VAC), 1.35·1.2·500 VDC.

DS200SLCCG1ACC: Calculate Maximum braking power (Pbr) i The braking energy delivered in any ten-minute cycle must be less than or equal to the energy delivered in the reference braking cycle. i. Braking power shall not exceed the rated maximum Pbrmax.
