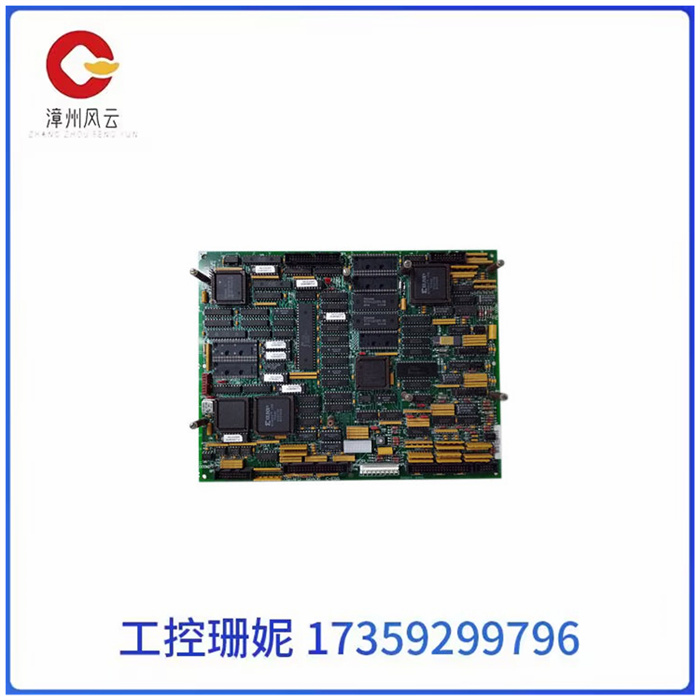

GE驱动控制板DS200SDCCG1AFD是驱动器的主要控制器。通用电气驱动控制板DS200SDCCG1AFD配备了3个微处理器和RAM，可以由多个微处理器同时访问。

您可以通过单板上的跳线和软件工具对单板进行配置。您可以在笔记本电脑上加载软件配置工具，然后从主板上下载配置设置并在笔记本电脑上进行编辑。如果需要将配置文件下载到笔记本电脑上，可以将单板连接到可选LAN通信卡上的串口线，另一端连接到笔记本电脑上的串口。完成配置文件的编辑后，使用串行连接将其上传到板上。

如果在连接串口时遇到问题，请确保笔记本电脑的串口配置正确，并检查串口线是否已连接并完全固定。

单板上有8个跳线，用于配置单板的行为。有些跳线仅用于工厂测试，用户不能更改。要改变跳线的位置，用拇指和食指握住跳线，将跳线从引脚中拔出。将跳线移动到新位置的引脚上，轻轻地将跳线插入引脚上。

DS200SDCCG1AFD GE 驱动控制卡 mark V系列 对单板进行配置

The GE drive control board DS200SDCCG1AFD is the main controller of the drive. The General Electric Drive control board DS200SDCCG1AFD is equipped with 3 microprocessors and RAM and can be accessed by multiple microprocessors simultaneously.

You can configure boards using jumpers and software tools on boards. You can load the software configuration tool on your laptop, then download the configuration Settings from the motherboard and edit them on your laptop. If you need to download the configuration file to your laptop, you can connect the board to the serial cable on the optional LAN communication card and connect the other end to the serial port on your laptop. After editing the configuration file, upload it to the board using a serial connection.

If you are having trouble connecting the serial port, make sure that the serial port on your laptop is configured correctly, and check that the serial cable is connected and fully secured.

There are eight jumpers on the board to configure the behavior of the board. Some jumpers are for factory testing only and cannot be changed by the user. To change the position of the jumper, hold the jumper between your thumb and forefinger and pull the jumper out of the pin. Move the jumper to the pin in the new position and gently insert the jumper into the pin.
