产品描述

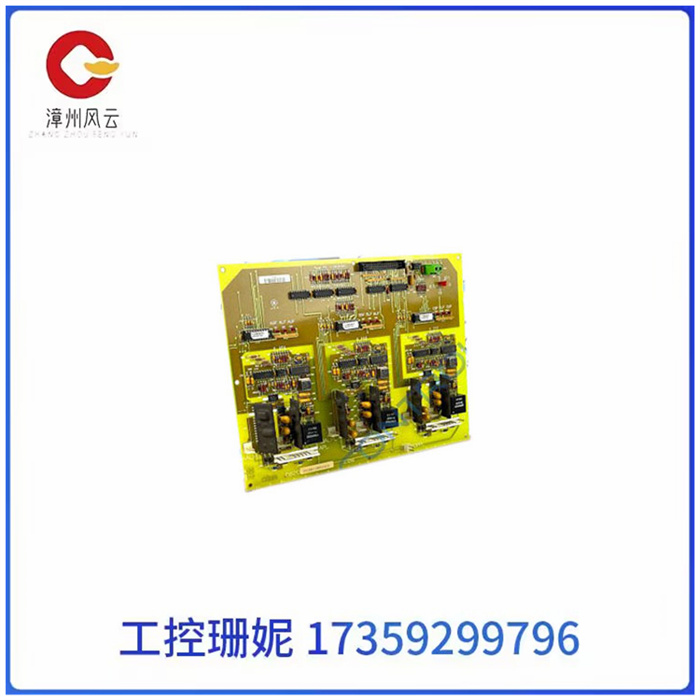

GE绝缘栅双极晶体管（IGBT）板DS200IIBDG1A包含九个指示灯LED，提供电路板处理状态。 从电路板机柜内部可以看到 LED，点亮时呈红色。

GE绝缘栅双极晶体管（IGBT）板DS200IIBDG1A有多个连接器，安装更换板时，必须确保将电缆连接在完全相同的连接器中。要确保将它们重新连接到相同的连接器，请检查有缺陷的电路板并记下指示已连接电缆的连接器的连接器标识符。然后制作标签并将它们贴在电缆上，以显示在新板上连接能力的位置。

此外，该板包含一个或多个跳线，用于配置板以特定方式处理驱动器的信息。工厂设置的其他跳线仅用于测试目的。开发板附带的信息标识跳线，并描述跳线设置以及它们如何更改开发板行为。

当电路板通电并且驱动器正在运行时，LED 指示电路板的操作。由于 LED 仅在向电路板通电时才可见，因此在打开机柜时必须格外小心。查看 LED 时，请勿触摸驱动器中的任何组件，并确保驱动器中没有掉落任何金属、污垢或其他碎屑。

DS200IIBDG1A 绝缘栅双极晶体管板

Product description

The GE insulated gate bipolar transistor (IGBT) board DS200IIBDG1A contains nine indicator leds that provide board handling status. The LED can be seen from the inside of the circuit board cabinet and is red when lit.

The GE insulated gate bipolar transistor (IGBT) board DS200IIBDG1A has multiple connectors, and when installing the replacement board, you must ensure that the cables are connected in exactly the same connectors. To ensure that they are reconnected to the same connector, check the defective circuit board and make note of the connector identifier indicating the connector to which the cable has been connected. Labels are then made and affixed to the cables to show the location of the connection capability on the new board.

In addition, the board contains one or more jumpers that configure the board to handle the drive's information in a particular way. Other jumpers set by the factory are used for testing purposes only. The information that comes with the board identifies the jumper and describes the jumper Settings and how they change the board behavior.

When the board is powered and the driver is running, the LED indicates the operation of the board. Since leds are only visible when energized to the circuit board, extra care must be taken when opening the cabinet. When viewing the LED, do not touch any components in the drive and ensure that no metal, dirt, or other debris has fallen from the drive.
