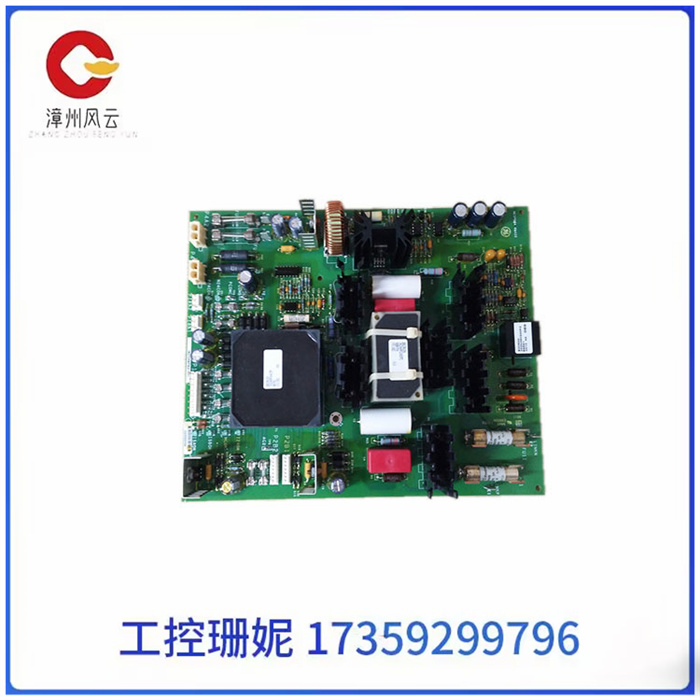

DS200CPCAG1ABB 是GE Fanuc生产的VersaMax系列屏障型I / O载体。它由36个栅栏式端子组成， 并为一个输入输出模块提供背板通信和现场布线。

突出的功能包括将模块地固定在托架中的闩锁孔和为接线端子提供覆盖的透明铰链门。每个输入输出模块都带有印刷线路卡标签，可以叠并到铰链门中。

每当需要额外的总线连接点时，下边缘上的凹口用于连接辅助输入输出端子排。 IC2CHS1可以卡入7.5 mm x 35 mm DIN导轨。为了照顾电磁兼容性（EMC），将DIN导轨接地重要。导轨具有导电腐蚀涂层，是未上漆的。如果应用需要地抵机械振动，则IC2CHS1也安装在面板上。

DS200CPCAG1ABB GE 电路板 通用电气 燃机卡模块

The DS200CPCAG1ABB is the VersaMax family of barrier I/O carriers manufactured by GE Fanuc. It consists of 36 palisade terminals and provides backplane communication and field wiring for an input/output module.

Prominent features include latch holes that anchor the module to the carrier and transparent hinged doors that provide cover for the terminal. Each input/output module comes with a printed line card label that can be folded and inserted into the hinged door.

Whenever additional bus connection points are required, a notch on the lower edge is used to connect the auxiliary input/output terminal block. The IC2CHS1 can be clipped into a 7.5mm x 35 mm DIN rail. To take care of electromagnetic compatibility (EMC), it is important to ground the DIN rail. The guide rail has a conductive corrosion coating and is unpainted. If the application requires ground resistance to mechanical vibration, the IC2CHS1 is also mounted on the panel.
