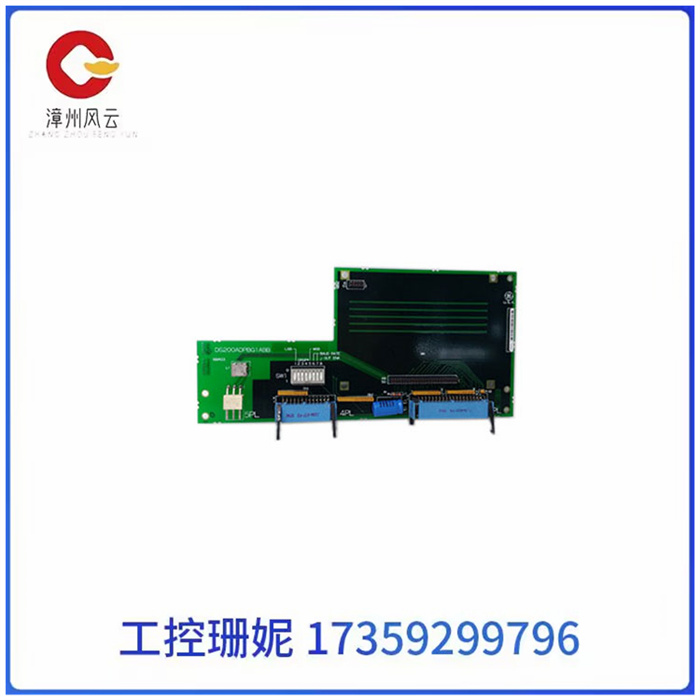

DS200ADPBG1ABB GE I/O适配器板 可用于将电路板固定到现场要求

DS200ADPBG1ABB GE I/O适配器板 可用于将电路板固定到现场要求

DS200ADPBG1ABB GE I/O适配器板 可用于将电路板固定到现场要求

Genius I/O适配板DS200ADPBG1ABB还配备了跳线，可用于帮助适配板满足现场要求。一些跳线只有一个在工厂设定的支持位置。跳接器仅由工厂用于测试，一旦测试完成，跳接器被移动到一个支持的位置。可以移动其他跳线来配置电路板。

原始电路板附带的书面文档解释了跳线，并定义了移动跳线如何改变电路板的行为。

但是，当您更换驱动器中的板时，请考虑您只需要在新板上匹配旧板上的跳线位置。取下旧电路板，将其放在平坦表面上的扁平静电保护袋中，例如工作台或桌子。您必须佩戴手腕带，因为它可以将静电从您的身体和电路板释放到金属接地表面。

从袋子中取出替换板，将其放在旧板旁边。跳线都有以JP开头的标识符。例如，JP1、JP2和JP3。移动替换板上的JP1跳线，使其与故障板上的位置相匹配。

DS200ADPBG1ABB GE I/O适配器板 可用于将电路板固定到现场要求

The Genius I/O Adapter Board DS200ADPBG1ABB is also equipped with jumpers that can be used to help the adapter board meet field requirements. Some jumpers have only one support position set in the factory. The jumper is only used by the factory for testing, and once the test is complete, the jumper is moved to a supported location. Other jumpers can be moved to configure the board.

The written documentation that came with the original board explained the jumpers and defined how moving the jumpers changed the behavior of the board.

However, when you replace the board in the drive, consider that you only need to match the jumper position on the old board on the new board. Remove the old circuit board and place it in a flat electrostatic protective bag on a flat surface, such as a workbench or table. You must wear a wrist strap because it releases static electricity from your body and the circuit board onto the metal grounding surface.

Remove the replacement board from the bag and place it next to the old board. Jumpers have an identifier beginning with JP. For example, JP1, JP2, and JP3. Move the JP1 jumper on the replacement board to match the position on the faulty board.
