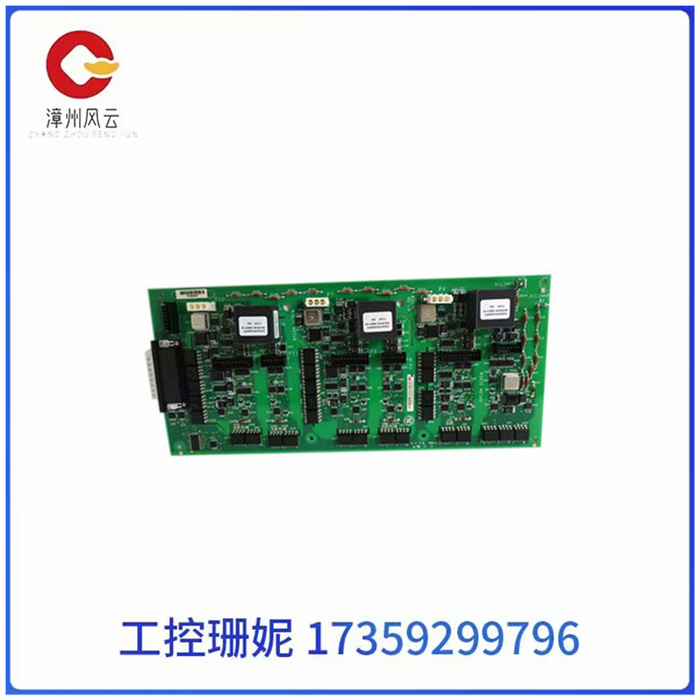

IS210AEBIH3BED 电路板模块 MARK VI系统备件

IS210AEBIH3BED 电路板模块 MARK VI系统备件

IS210AEBIH3BED 电路板模块 MARK VI系统备件

缺点 ：

（1）接口的信号电平值较高，易损坏接口电路的芯片，又因为与TTL电平不兼容故需使用电平转换电路方能与TTL电路连接。

（2）传输速率较低，在异步传输时，波特率≤20Kbps。

（3）接口使用一根信号线和一根信号返回线而构成共地的传输形式，这种共地传输容易产生共模干扰，所以抗噪声干扰性弱。

（4）传输距离有限，最大传输距离标准值为50英尺（实际≤15米）。

特性：

逻辑“1”以两线间的电压差为+（2—6）V表示；逻辑“0”以两线间的电压差为-（2—6）V表示。接口信号电平比RS-232降低了，就不易损坏接口电路的芯片，且该电平与TTL电平兼容，可方便与TTL电路连接。

IS210AEBIH3BED 电路板模块 MARK VI系统备件

Disadvantages:

(1) The signal level value of the interface is high, easy to damage the chip of the interface circuit, and because it is incompatible with the TTL level, it is necessary to use a level conversion circuit to connect with the TTL circuit.

(2) The transmission rate is low, in the asynchronous transmission, the baud rate is less than 20Kbps.

(3) The interface uses a signal line and a signal return line to form a common ground transmission form, which is easy to produce common mode interference, so the anti-noise interference is weak.

(4) Transmission distance is limited, the maximum transmission distance standard value is 50 feet (actual ≤15 meters).

Features:

Logic "1" is represented by the voltage difference between the two lines as + (2-6) V; The logical "0" is represented by the voltage difference between the two lines as - (2-6) V. The interface signal level is lower than RS-232, it is not easy to damage the chip of the interface circuit, and the level is compatible with the TTL level, and it can be easily connected with the TTL circuit.
