IS200TTURH1CFD 欧美进口备件 火电厂设备模块

IS200TTURH1CFD 欧美进口备件 火电厂设备模块

IS200TTURH1CFD 欧美进口备件 火电厂设备模块

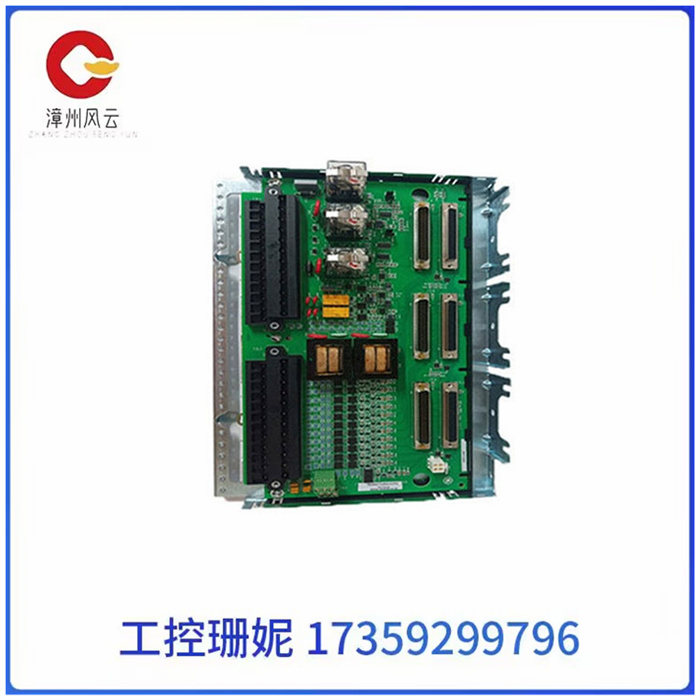

IS200TTURH1C主要是矩形，有一些小切口。该板与PTUR和VTUR板等其它PCB一起使用，控制发电机的同步。这主要通过硬件和连接来实现。

IS200TTURH1C有几个表面安装继电器。此外，电路板使用可变电阻，电路板中心附近还有两个变压器。与其他电路板组件的通信通过d外壳连接器(公母)、插头连接器和端子板进行。电路板上最大的两个端子板配有螺丝安装连接器，并标有编号以供参考。

IS200TTURH1C还包括两个跳线开关，允许更改电路板电路，以允许单工或TMR表决。

IS200TTURH1CFD 欧美进口备件 火电厂设备模块

The IS200TTURH1C is mostly rectangular with a few small cuts. The board is used with other PCBS such as PTUR and VTUR boards to control the synchronization of the generator. This is mainly achieved through hardware and connectivity.

The IS200TTURH1C has several surface-mounted relays. In addition, the board uses variable resistors, and there are two transformers near the center of the board. Communication with other board components occurs through D-housing connectors (male and female), plug connectors, and terminal boards. The two largest terminal boards on the board are equipped with screw mount connectors and are numbered for reference.

The IS200TTURH1C also includes two jumper switches that allow the board circuit to be changed to allow simplex or TMR voting.
