IS200TDBTH6ABC 美国GE电气 隔离式 12 位模拟输出板

 IS200TDBTH6ABC 美国GE电气 隔离式 12 位模拟输出板

 IS200TDBTH6ABC 美国GE电气 隔离式 12 位模拟输出板

IS200TDBTH6ABC只是我们库存中可用的几种不同版本的TDBT板之一。请务必检查您当前的电路板，以确保您为特定应用订购了正确版本的TDBT板。

IS200TDBTH6ABC包括像许多其他Mark VI组件一样的前面板。这个面板包括两个固定螺钉，将保持板组件在您的机架安装后到位。前面板还包括两个连接器和三个LED指示灯。面板上有GE标识和单板ID标识。

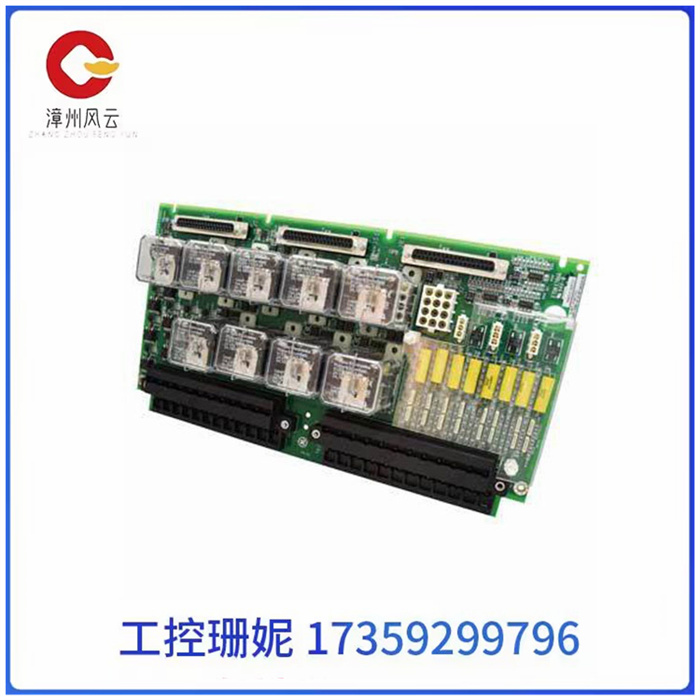

电路板本身带有多个集成电路、两个背板连接器、测试点、继电器和电阻。还有许多不同设计的电容器。组件位于电路板的两侧。板的边缘包括代码，将帮助您放置和正确的布线，虽然你也应该咨询原始文件的组件。这包括手册和用户指南。

 IS200TDBTH6ABC 美国GE电气 隔离式 12 位模拟输出板

The IS200TDBTH6ABC is just one of several different versions of TDBT boards available in our inventory. Be sure to check your current board to make sure you have ordered the correct version of the TDBT board for your particular application.

The IS200TDBTH6ABC includes a front panel like many other Mark VI components. This panel includes two setting screws that will hold the board assembly in place after your rack is installed. The front panel also includes two connectors and three LED indicators. The GE identifier and board ID are displayed on the panel.

The board itself comes with multiple integrated circuits, two backplane connectors, test points, relays, and resistors. There are also many different designs of capacitors. The components are located on both sides of the board. The edges of the board include code that will help you place and wire correctly, although you should also consult the original documentation for the components. This includes manuals and user guides.
