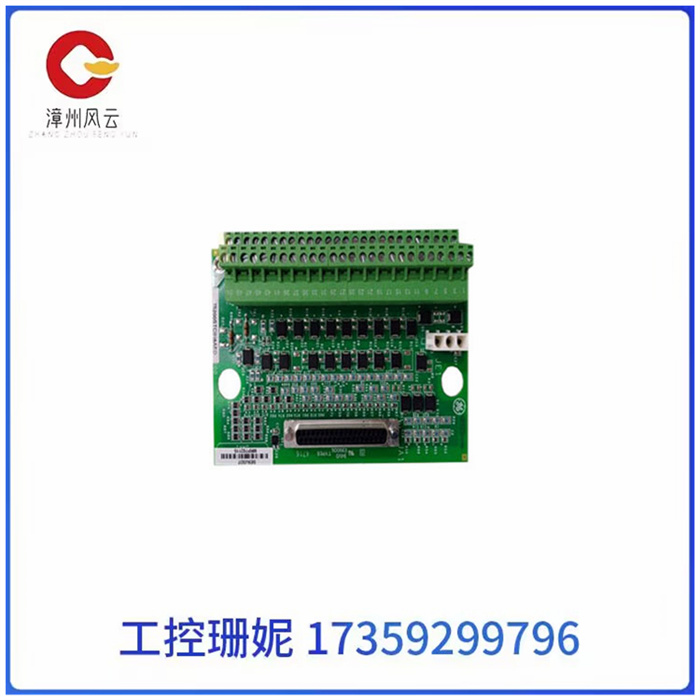

分立输出I/O包IS200STCIH2A可以提供多达两个以太网输入输出网络之间的电接口以及分立输出终端板。这个包可以控制多达十二个继电器，并将接受终端板特定的反馈。

I/O包的所有输入将通过双以太网RJ454连接器以及三针电源输入发送。一个DC37引脚连接器用于输出，它将直接连接到相关的终端板连接器。如果需要视觉诊断，它们将通过包装前面的LED指示灯提供。

如上所述，IS200STCIH2A I/O包可以提供诊断led;通常，12个led将是黄色的，为每个输出提供指示，指示该命令正在接通继电器。BBPx处理器led也将用于指示所需的诊断。有一个ATTN LED，将是红色或绿色，固体或闪烁。绿色ATTN LED的一些模式是2hz 50%和每四秒两个4hz脉冲;后一种模式表明应用程序是在线的，并按需运行。

GE IS200STCIH2A ASM 电路板 MARK VI 通用电气

The discrete output I/O package IS200STCIH2A can provide an electrical interface between up to two Ethernet input/output networks and a discrete output terminal board. This package can control up to twelve relays and will receive feedback specific to the terminal board.

All inputs for the I/O packet will be sent via a dual Ethernet RJ454 connector as well as a three-pin power input. A DC37 pin connector is used for the output, which will be connected directly to the associated terminal board connector. If visual diagnostics are required, they will be provided via an LED indicator on the front of the package.

As mentioned above, the IS200STCIH2A I/O package can provide diagnostic leds; Typically, 12 leds will be yellow, providing an indication for each output that the command is connecting the relay. The BBPx processor led will also be used to indicate the required diagnostics. There is an ATTN LED that will be red or green, solid or flashing. Some modes of the green ATTN LED are 2hz 50% and two 4hz pulses every four seconds; The latter pattern indicates that the application is online and running on demand.
