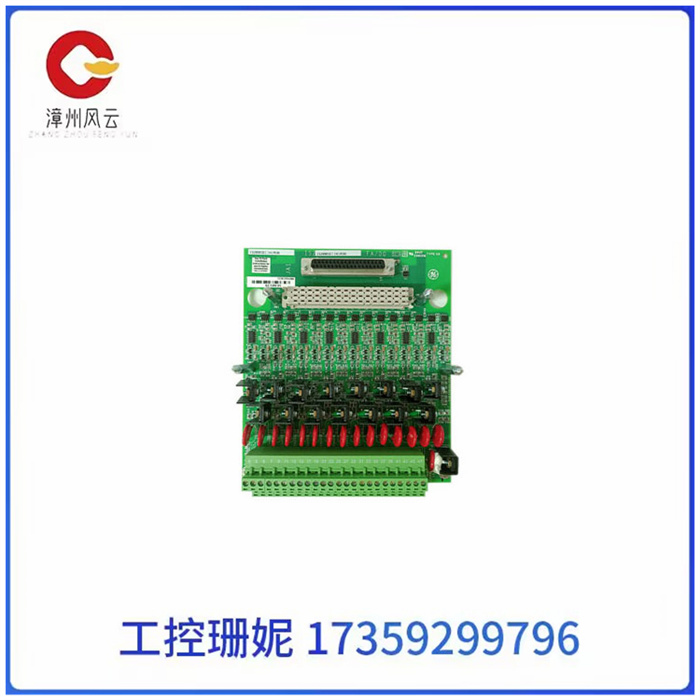

IS200SDIIH1ADB MRP683026 输入扩展模块 GE 通用电气

IS200SDIIH1ADB MRP683026 输入扩展模块 GE 通用电气

IS200SDIIH1ADB MRP683026 输入扩展模块 GE 通用电气

IS200SDIIH1ADB是GE为Mark VI系统制造的单工继电器输出端子板。MarkV是通用电气公司发布的最后一批燃气或蒸汽涡轮机Speedtronic管理系统之一。

这是一个用于蒸汽和燃气轮机的机械驱动器和发电机应用的集成保护、控制和监控系统。MKVI也用作集成动力岛和工厂平衡控制的平台。系统有一个HM/操作员界面连接到中央控制模块(或在TMR系统中，连接到控制模块)，中央控制模块又连接到负责输入/输出的端子板。

IS200SDIIH1ADB配有12个C型干触点输出继电器。它使用一根电缆连接到VTUR、VCRC或VCC处理器板。这是一个不支持TMR应用的单工板。然而，两个DRLY电路板可以连接到前面提到的电路板，总共有24个触点输出。该板有两个版本(H1A和H1B。)H1A版本具有更高功率的继电器触点。IS200SDIIH1ADB的端子板从一边到另一边占据了电路板的两个长边。每则有36个螺丝连接可用。电路板的中心安装了前面提到的继电器和电缆连接器。该板没有板载抑制和继电器状态监控。IS200SDIIH1ADB不包括螺线管电源。每个继电器都有一个相应的LED来指示线圈两端的电压。这块木板长8.5英寸，宽8.1英寸。

IS200SDIIH1ADB MRP683026 输入扩展模块 GE 通用电气

The IS200SDIIH1ADB is a simplex relay output terminal board manufactured by GE for Mark VI systems. MarkV is one of the last Speedtronic management systems for gas or steam turbines released by General Electric.

It is an integrated protection, control and monitoring system for mechanical drive and generator applications in steam and gas turbines. The MKVI is also used as a platform for integrated power island and plant balance control. The system has an HM/ operator interface connected to the central control module (or, in TMR systems, to the control module), which in turn is connected to the terminal board responsible for the input/output.

The IS200SDIIH1ADB is equipped with 12 type C dry contact output relays. It uses a cable to connect to a VTUR, VCRC, or VCC processor board. This is a simplex board that does not support TMR applications. However, two DRLY boards can be connected to the aforementioned boards, with a total of 24 contact outputs. There are two versions of the board (H1A and H1B.) The H1A version has higher power relay contacts. The IS200SDIIH1ADB terminal board occupies two long sides of the board from side to side. Each has 36 screw connections available. The center of the board is fitted with the aforementioned relays and cable connectors. The board has no onboard suppression and relay status monitoring. The IS200SDIIH1ADB does not include a solenoid power supply. Each relay has a corresponding LED to indicate the voltage at both ends of the coil. The board is 8.5 inches long and 8.1 inches wide.
