GE General Electric IS200EPSMG1AED 燃机卡 IN STOCK

GE General Electric IS200EPSMG1AED 燃机卡 IN STOCK

GE General Electric IS200EPSMG1AED 燃机卡 IN STOCK

IS200EPSMG1AED是通用电气为其Mark VI系列生产的励磁电源模块。MKVI是燃气/蒸汽轮机管理系统Speedtronic系列的一部分，自1969年MKI发布以来，该系列一直由GE生产。MKVI包括一个基于pc的操作界面或HMI，它通过以太网连接与控制模块中的主处理器卡通信。操作员界面允许从一个位置查看所有模拟和数字数据，包括事件和警报的时间标签。

IS200EPSMG1AED的功能是将EPDM的125 VDC转换为控制系统所需的电压。包括+5 VDC、+/-15 VDC和+24 VDC。

IS200EPSMG1AED的前面板包含7个LED灯。这些灯被标记为P5,P15,N15,P24A,P24B,N24B和P70。前面板上有GE标识和单板识别号。

IS200EPSMG1AED由几个大型组件组成。这包括一个变压器在一个框架和一个大型电感器标记Bicron B9309 0912。还有另一个较小的电感线圈(L2)。这块电路板有五个装有散热片的晶体管。这些是直接位于后面的前面板。该板有一个额外的四个散热器元件安装在其表面。

GE General Electric IS200EPSMG1AED 燃机卡 IN STOCK

The IS200EPSMG1AED is an exciting power module produced by General Electric for its Mark VI series. The MKVI is part of the Speedtronic family of gas/steam turbine management systems that have been produced by GE since the release of the MKI in 1969. The MKVI includes a PC-based operating interface, or HMI, which communicates with the main processor card in the control module via an Ethernet connection. The operator interface allows all analog and digital data, including time tags for events and alerts, to be viewed from one location.

The function of the IS200EPSMG1AED is to convert the EPDM's 125 VDC into the voltage required for the control system. The value can be +5 VDC, +/-15 VDC, and +24 VDC.

The front panel of the IS200EPSMG1AED contains 7 LED lights. These lights are marked as P5, P15, N15, P24A, P24B, N24B and P70. The GE label and board identification number are on the front panel.

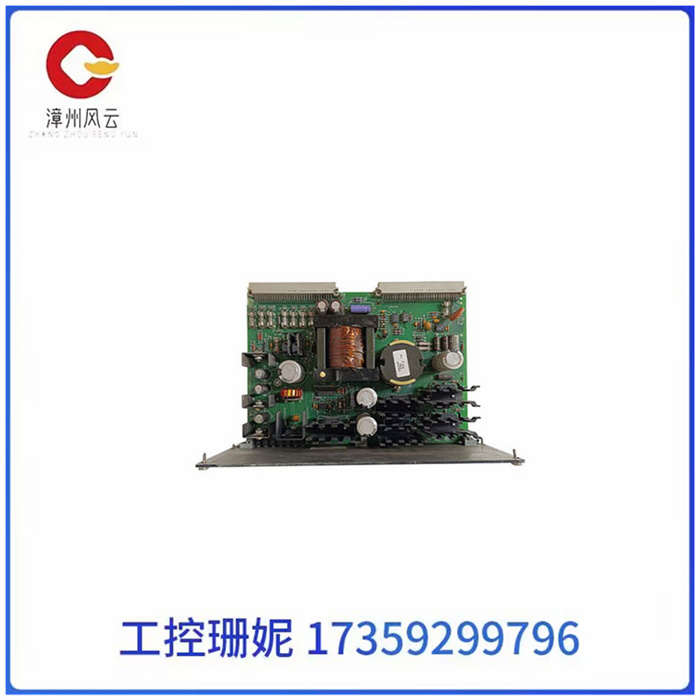

The IS200EPSMG1AED consists of several large components. This includes a transformer in a frame and a large inductor marked Bicron B9309 0912. There is also another smaller inductor (L2). The circuit board has five transistors with heat sinks. These are the front panels located directly behind. The board has an additional four radiator elements mounted on its surface.
