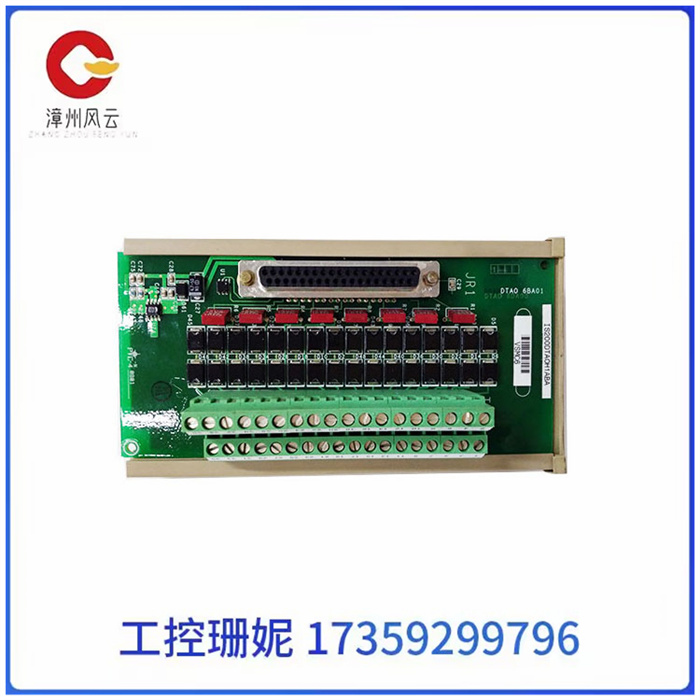

GE通用电气 IS200DTAOH1ABA 电路板模块 MARK VI系统备件

GE通用电气 IS200DTAOH1ABA 电路板模块 MARK VI系统备件

GE通用电气 IS200DTAOH1ABA 电路板模块 MARK VI系统备件

IS200DTAIH1ABB是为Mark VI系统创建的GE组件。Mark VI是在Speedtronic系列名称下发布的燃气/蒸汽轮机管理系统。自20世纪60年代以来，该系列一直用于涡轮机管理的各种迭代。Mark VI具有以太网通信能力，并在硬件和软件中包括机载诊断(限制检查)。

IS200DTAIH1ABB是一款单工模拟输入/输出终端板。它是一个紧凑的模拟信号输入板。电路板安装在一个塑料支架上，使PCB可以安装在din导轨上。这块电路板有十个模拟输入和两个模拟输出。输出为0-20mA，但可以通过重新配置跳线来配置0-200mA电流。

IS200DTAIH1ABB具有单个37针连接器和闭锁紧固件。这个标记为JR1。该板有一个端子板(TB1)，有48个螺钉连接。该端子带永久安装在电路板上。端子排一般采用#18 AWG线的屏蔽双绞线。请注意，螺钉43/44被指定为接地(SCOM)连接。地线应尽量短。该板有21个跳线开关;这些被标记为JP1A/B- jp10a /B(20)加上JP0。电路板还包括各种电容器、电阻器和集成电路，以及四个小的子面板。板上的跳线用于配置电流和电压。

GE通用电气 IS200DTAOH1ABA 电路板模块 MARK VI系统备件

The IS200DTAIH1ABB is a GE component created for the Mark VI system. Mark VI is a gas/steam turbine management system released under the Speedtronic family name. The series has been used in various iterations of turbine management since the 1960s. The Mark VI has Ethernet communication capabilities and includes on-board diagnostics (restricted checks) in both hardware and software.

The IS200DTAIH1ABB is a simplex analog input/output terminal board. It is a compact analog signal input board. The board is mounted on a plastic bracket that allows the PCB to be mounted on the din rail. The board has ten analog inputs and two analog outputs. The output is 0-20mA, but 0-200mA current can be configured by reconfiguring the jumper.

The IS200DTAIH1ABB has a single 37-pin connector and locking fastener. This is labeled JR1. The board has a terminal board (TB1) with 48 screws attached. The terminal tape is permanently installed on the circuit board. The terminal block generally uses shielded twisted pair of #18 AWG wire. Note that screws 43/44 are designated for ground (SCOM) connections. The ground cable should be as short as possible. The board has 21 jumper switches; These are labeled JP1A/ B-JP10A /B(20) plus JP0. The board also includes various capacitors, resistors, and integrated circuits, as well as four small sub-panels. Jumpers on the board are used to configure current and voltage.
