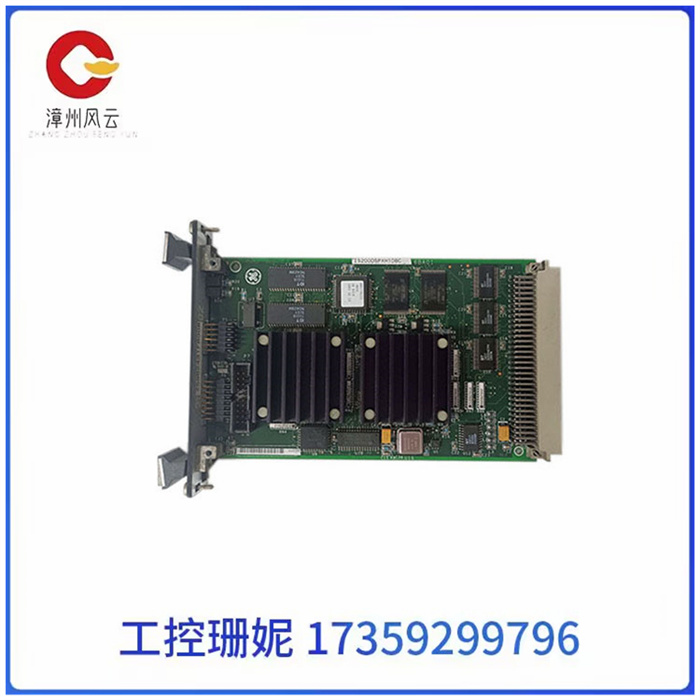

IS200DSPXH1DBC是Mark VI系统中使用的电路板组件。Mark VI是GE为控制工业气体/蒸汽轮机系统而创建的后期Speedtronic系统之一。Speedtronic产品线始于20世纪60年代的MKI，并在几次新的迭代中改进并持续到2000年代，最新的是Mark VIe。Mark VI包括一个中央控制模块和一个建立在Windows平台上的连接操作界面。操作员界面允许从单个接入点轻松访问系统数据和报警状态。

IS200DSPXH1DBC作为数字信号处理器控制板。由于有几个不同版本的DSPX板可用，请确保您为您的系统订购了该板的正确迭代。

IS200DSPXH1DBC包括一个60 MHz数字信号处理器、一个专用集成电路(ASIC)和标准存储器组件。ASIC提供自定义逻辑功能，并连接到嵌入在连接到电路板的前面板中的两个led。这些指示灯(一红一绿)用于告警单板故障。

IS200DSPXH1DBC有几个I/O连接器。这包括一个背板连接器(P1)和一个垂直引脚连接器位于靠近板的前面(P7)。此外，还有两个连接器安装在板的面板上。这些功能作为工程监控端口(P6，)和DSP仿真端口(P5)。

IS200DSPXH1DBC 美国GE模块卡件 DCS系统备件

The IS200DSPXH1DBC is a circuit board component used in the Mark VI system. The Mark VI is one of the later Speedtronic systems created by GE to control industrial gas/steam turbine systems. The Speedtronic product line began in the 1960s with the MKI and was improved and continued into the 2000s with several new iterations, the latest being the Mark VIe. Mark VI includes a central control module and a connected operating interface built on the Windows platform. The operator interface allows easy access to system data and alarm status from a single access point.

IS200DSPXH1DBC as a digital signal processor control board. Since there are several different versions of the DSPX board available, make sure you order the correct iteration of the board for your system.

The IS200DSPXH1DBC includes a 60 MHz digital signal processor, an application-specific integrated circuit (ASIC), and standard memory components. The ASIC provides custom logic capabilities and is connected to two leds embedded in the front panel connected to the circuit board. These indicators (one red and one green) are used to alarm board faults.

The IS200DSPXH1DBC has several I/O connectors. This includes a backplane connector (P1) and a vertical pin connector located near the front of the board (P7). In addition, there are two connectors mounted on the panel of the board. These functions serve as the engineering monitoring port (P6,) and DSP emulation port (P5).
