产品描述

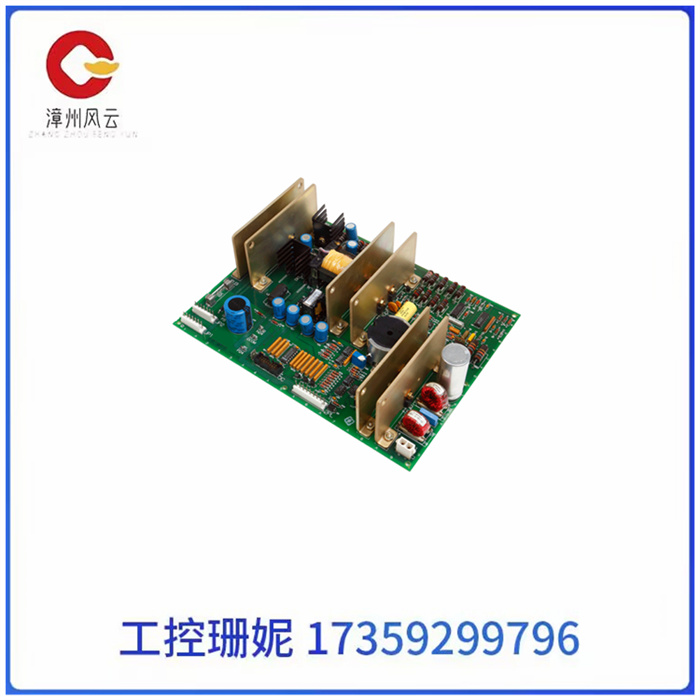

GE接触器驱动板DS200CDBAG1B打开和关闭接触器。您会发现更换DS200CDBAG1B既简单又快捷，因为该驱动器和电路板具有几个重要的设计特性。首先，电路板安装在服务人员易于访问的机柜中。此外，支架用于支撑板的重量并将板固定到位。四个螺钉将主板固定在驱动器中。它们易于接近和拆卸螺钉。所有连接器都易于打开，使服务商能够从电路板上拔下所有电缆。

卸下DS200CDBAG1B固定电路板的四个螺钉时，请将四个螺钉放在安全的地方以备将来使用。您需要螺钉将更换板固定到位。此外，连接器的设计使服务人员可以确保连接器完全就位。也就是说，在连接完成之前，连接器不会卡入到位。

一个重要的注意事项是，您只能在准备安装之前立即从静态包装中取出替换板。这将减少DS200CDBAG1B电路板上静电积聚的机会。您会注意到 DS200CDBAG1B 上的一个跳线。它保留在工厂用于测试目的。它是一个 3 针跳线，1 针和 2 针必须保持覆盖才能正常工作。当引脚 2 和 3 被覆盖时，它仅供工厂使用。

DS200CDBAG1B GE接触器驱动板 Mark V系列 用作高速接触器驱动控制的接口

Product description

The GE contactor drive board DS200CDBAG1B opens and closes the contactor. You'll find that replacing the DS200CDBAG1B is easy and quick, as the driver and board have several important design features. First, the board is installed in a cabinet that is easily accessible to service personnel. In addition, the brackets are used to support the weight of the board and hold the board in place. Four screws hold the motherboard in the drive. They are easy to access and remove screws. All connectors are easy to open, enabling the service provider to unplug all cables from the board.

When removing the four screws that secure the DS200CDBAG1B circuit board, place the four screws in a safe place for future use. You will need screws to hold the replacement plate in place. In addition, the connector is designed so that service personnel can ensure that the connector is fully in place. That is, the connector will not snap into place until the connection is complete.

An important note is that you can only remove the replacement board from its static packaging immediately before it is ready for installation. This will reduce the chance of static buildup on the DS200CDBAG1B board. You will notice a jumper on the DS200CDBAG1B. It is retained in the factory for testing purposes. It is a 3-pin jumper, and the 1 and 2 pins must remain covered in order to work properly. When pins 2 and 3 are covered, it is for factory use only.
