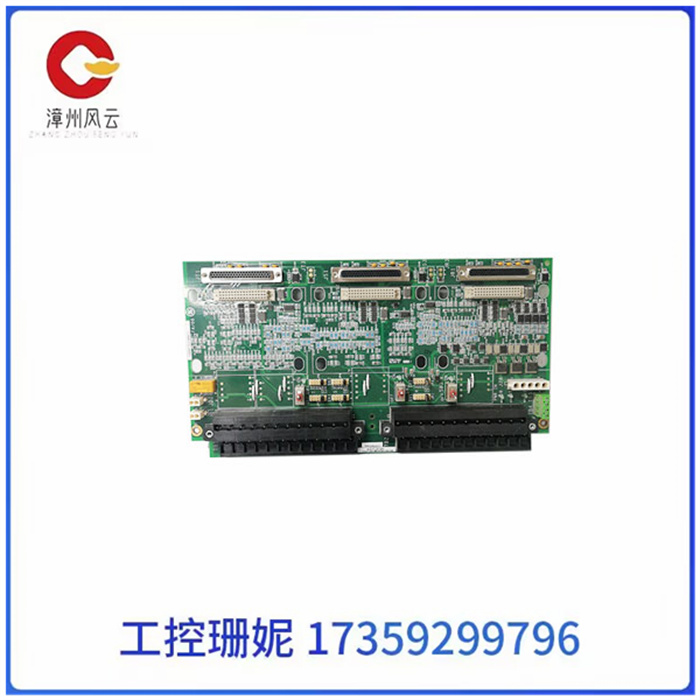

GE IS200TSVCH2AED MRP246517 继电器输入输出模块

GE   IS200TSVCH2AED MRP246517 继电器输入输出模块

GE   IS200TSVCH2AED MRP246517 继电器输入输出模块

is 200 vtc CCH 1 c是GE公司制造的电路板组件，是Mark VI系统的一部分。MKV是燃气和蒸汽轮机管理Speedtronic系列的一部分，该系列始于20世纪60年代的Mak1，并通过Mak V和Mark Vle延续了几十年。Mak V1有一个连接到操作员界面的中央控制模块。该操作员界面允许最终用广通过使用Windows平台PC构建的界面访问报警状态和系统数据

作为热电输入板，IS200VTCCH1C通过TBTC和DTTC端子板等端子板接受24路热电偶输入。1S200VTCCH1C仅支持T、S、K、J和E型热电偶.它还支持范围为-8mV至+45mV的mV输入。该板不支持B、NR型热电，或-20mV至-9mV或+46mV至+95mV的mV输入如果需要这些节围，则需要一个VTCCH2板。

S200VTCCH1C内置两个背板和四个其他板连接器、这些其他连接器由导电点或导电迹线制成，这块板上的电容和电阳数以百计;这些都有编号并带有参考标记。它还具有二极管、电感线圈或磁珠以及TP测试点。它还具有许多集成电路，现场可编程门阵列(Field Programmable GataArray的缩写)s、CMOS静态RAM和数字信号处理器。前面板上安装了三ed组件，分别标记为运行(绿色LED、)故障(红色LED)和状态(橙色LED)。)

GE   IS200TSVCH2AED MRP246517 继电器输入输出模块

The is 200 vtc CCH 1c is a GE manufactured circuit board component that is part of the Mark VI system. The MKV is part of the Speedtronic series of gas and steam turbine management, which began with the Mak1 in the 1960s and continued for decades through the Mak V and Mark Vle. The Mak V1 has a central control module connected to the operator interface. The operator interface allows end-users to access alarm status and system data through an interface built using a Windows platform PC

As a thermoelectric input board, the IS200VTCCH1C accepts 24 thermocouple inputs via terminal boards such as TBTC and DTTC terminal boards. The 1S200VTCCH1C supports only T, S, K, J, and E thermocouples. It also supports mV inputs ranging from -8mV to +45mV. The board does not support type B, NR thermoelectric, or mV inputs of -20mV to -9mV or +46mV to +95mV. If these enclosures are required, a VTCCH2 board is required.

The S200VTCCH1C has two built-in backplanes and four other board connectors, which are made of conductive points or trace lines, and hundreds of capacitors and negatives on this board; These are numbered and carry a reference mark. It also has a diode, an inductor or magnetic bead, and a TP test point. It also features a number of integrated circuits, Field Programmable GataArray (short for Field Programmable Gataarray)s, CMOS static RAM, and a digital signal processor. Three ed components are installed on the front panel, labeled Operational (green LED,) Fault (red LED) and Status (orange LED).
