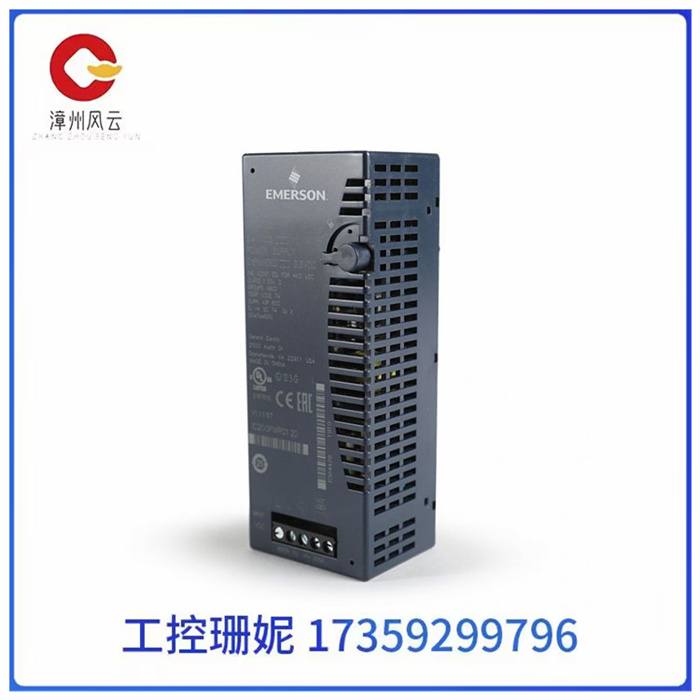

IC20OPWRO001是一个24VDC电源，为CPU、NU和/O模块提供背板电源。

IC20OPWRO01可以通过3.3伏和5伏输出提供最大1.5安培的输出电流，3.3伏输出最高0.25安培。如果IC2OOPWRO01安装在CPU或NIU上，则可将其视为站的主电源。

IC20OPWR001安装在电源升压器托架上时，也可用作补充电源。

IC20OPWRO01的输入电压为18至30VDC，标称电压为24VDC，输入功率为11瓦。IC2OOPWRO0O1的保持时间为10ms，浪涌电流在24VDC时为2OA，在30VDC时为25A。IC2OOPWRO01的输出电压为5VDC，3.3VDC。

总输出电流不应超过1.5a。IC 200 PWR001提供短路、过载和反极性保护。接线时，DC-必须接地至机架/大地。DC-接地到电源的内部框架，这意味着不应该使用浮动电源。

GE IC200PWR001D 工业系统控制

The IC20OPWRO001 is a 24VDC power supply that provides midplane power for the CPU, NU, and/or O modules.

The IC20OPWRO01 can provide output current of up to 1.5 amps through 3.3 volts and 5 volts output, and up to 0.25 amps through 3.3 volts output. If IC2OOPWRO01 is installed on a CPU or NIU, it can be considered as the main power supply for the station.

The IC20OPWR001 can also be used as a supplementary power supply when mounted on a power booster bracket.

The input voltage of IC20OPWRO01 is 18 to 30VDC, the nominal voltage is 24VDC, and the input power is 11 watts. IC2OOPWRO0O1 has a holding time of 10ms and an inrush current of 2OA at 24VDC and 25A at 30VDC. The output voltage of IC2OOPWRO01 is 5VDC, 3.3VDC.

The total output current should not exceed 1.5a. The IC 200 PWR001 provides short circuit, overload and reverse polarity protection. When connecting cables, the DC- must be grounded to the rack/ground. DC- ground to the internal frame of the power supply, which means that floating power should not be used.
