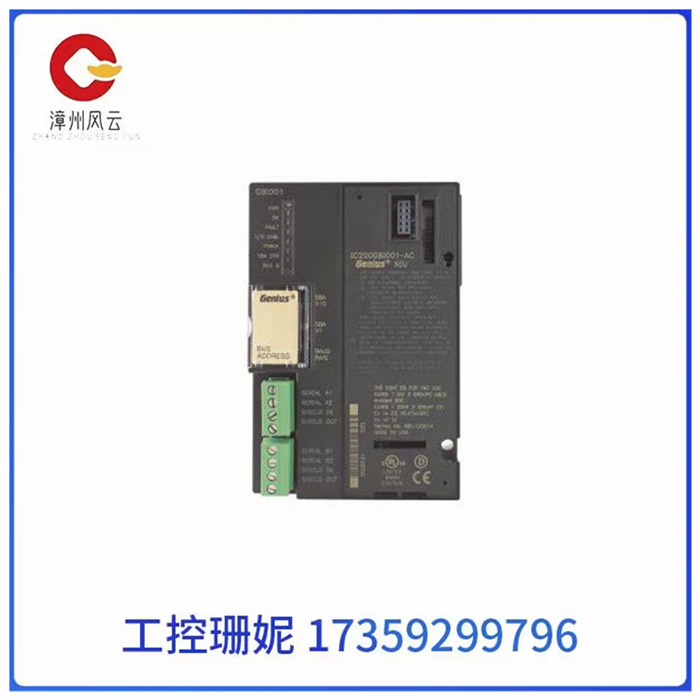

IC200GBI001是GE Fanuc生产的Genius网络接口单元，是VersaMax系列的一部分。该设备为各种连接的输入和输出模块执行控制功能。假设安装了正确的固件版本，该网络接口单元与各种模块兼容，包括90-70系列可编程逻辑控制器、Genius总线控制器以及PacSystems RX7和Rx3可编程逻辑控制器。此外，任何能够控制总线的计算机都可以被指定为主机。

对于每个机架，该网络接口单元可以支持八个模块，总共支持八个机架。每次总线扫描的网络输入量为128字节。离散输入输出内存总量为1024点。模拟输入和输出存储器各为128字节。该装置有两种电源设置:250毫安时为5伏，10毫安时为3.3伏。该器件的串行总线地址范围为0-31。网络上的数据传输速率有153.6千波特扩展、153.6千波特标准、76.8千波特或38.4千波特。注:传输速率因距离和支持的设备数星而异。

的其他功能IC200GBI001包括64个模拟输入和输出、可移动连接器、使用屏蔽双绞线(STP)和光纤电缆的能力以及通过增强诊断模式(EDMN)的用户诊断数据。此外，该单元为介质和硬件提供冗余。

IC200GBI001 GE PLC模块

The IC200GBI001 is the Genius network interface unit produced by GE Fanuc and is part of the VersaMax family. The device performs control functions for various connected input and output modules. Assuming the correct firmware version is installed, the network interface unit is compatible with a variety of modules, including the 90-70 series programmable logic controllers, Genius bus controllers, and PacSystems RX7 and Rx3 programmable logic controllers. In addition, any computer capable of controlling the bus can be designated as a host.

For each rack, the network interface unit can support eight modules for a total of eight racks. The amount of network input per bus scan is 128 bytes. The total amount of discrete input and output memory is 1024 points. Analog input and output memory are 128 bytes each. The unit has two power Settings: 5 volts at 250 mah and 3.3 volts at 10 mah. The serial bus address range of the device is 0-31. Data transfer rates on the network are 153.6 gigabit extended, 153.6 gigabit standard, 76.8 gigabit, or 38.4 gigabit. Note: Transfer rates vary depending on distance and number of supported devices.

Additional features of the IC200GBI001 include 64 analog inputs and outputs, removable connectors, the ability to use shielded twisted pair (STP) and fiber optic cables, and user diagnostic data through Enhanced Diagnostic Mode (EDMN). In addition, the unit provides redundancy for media and hardware.
