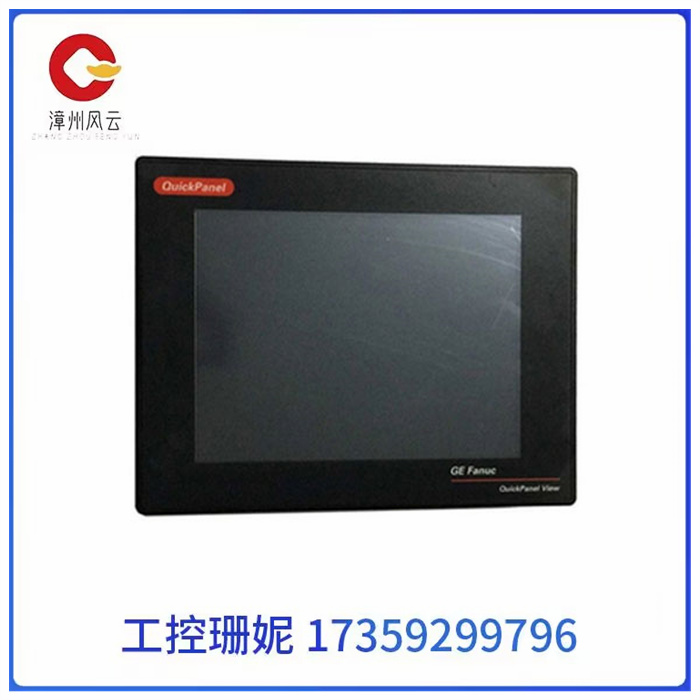

IC754VBF15CTD GE 人机界面 15英寸彩色TFT 带人机接口模块

IC754VBF15CTD GE 人机界面 15英寸彩色TFT 带人机接口模块

IC754VBF15CTD GE 人机界面 15英寸彩色TFT 带人机接口模块

产品功能

GE Fanuc是IC754VBF15CTD是QuickPanel+产品系列中的人机界面(HMI)设备。该HMI具有12.1“TFT LCD屏幕，触摸屏输入界面，32MB动态RAM。

IC754VBF15CTD是通用电气(GE)发那科自动化公司制造的操作面板。IC754VBF15CTD是QuickPanel人机界面(HMI)设备的一部分。HMI设备预装了CE操作系统，该系统提供了任何操作员或用户都熟悉的配置和维护界面。

IC754VBF15CTD允许任何操作员或用户通过提供的监视器，触摸输入接口和通信接口监视或控制连接的机器或过程。为了监控系统，提供的12英寸彩色薄膜晶体管(TFT)显示屏能够通过定制设计的模拟提供过程的可视化。

此外，IC754VBF15CTD彩色显示屏支持实现彩色编码动画和状态显示，以提高信息水平。控制命令通过触摸感应屏幕输入，允许操作员通过触摸相应的运行时图标或对象直接输入命令。与控制器的通信是使用单RS232/RS485组合端口在点对点或多点串行拓扑中完成的，而网络和多节点通信则通过支持10/100 Mbps传输速率的以太网通信接口完成。

IC754VBF15CTD GE 人机界面 15英寸彩色TFT 带人机接口模块

Product function

The GE Fanuc is the IC754VBF15CTD is a Human Machine interface (HMI) device in the QuickPanel+ product family. The HMI features a 12.1 "TFT LCD screen, touch screen input interface, and 32MB of dynamic RAM.

The IC754VBF15CTD is an operating panel manufactured by General Electric (GE) Fanuc Automation. The IC754VBF15CTD is part of the QuickPanel Human Machine Interface (HMI) device. HMI devices come pre-installed with the CE operating system, which provides a configuration and maintenance interface familiar to any operator or user.

The IC754VBF15CTD allows any operator or user to monitor or control the connected machine or process through the provided monitor, touch input interface and communication interface. To monitor the system, the supplied 12-inch color thin-film transistor (TFT) display provides visualization of the process through custom-designed simulations.

In addition, the IC754VBF15CTD color display supports color-coded animation and status display to improve the level of information. Control commands are entered via a touch-sensitive screen, allowing the operator to enter commands directly by touching the corresponding runtime icon or object. Communication with the controller is done in a point-to-point or multipoint serial topology using a single RS232/RS485 combination port, while network and multi-node communication is done via an Ethernet communication interface that supports 10/100 Mbps transmission rates.
