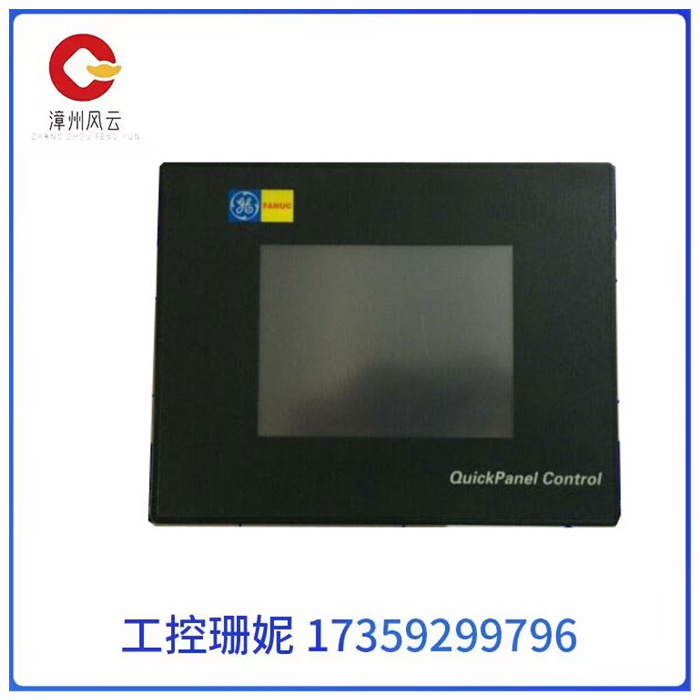

IC754CGL06CTD 是由 GE(通用电气)制造的操作界面。它是 QuickPanel+ 系列的一部分。它是一款基于一体化微机的7英寸宽屏TFT彩色触摸屏终端。屏幕采用 800 x 480 像素 WVGA 分辨率设计，并具有 LED 背光显示屏。它是投射电容式触摸屏。

IC754CGL06CTD HMI(人机界面)用作工业控制系统的接口。它非常灵活，具有高级通信选项。在面板上运行整个系统的微处理器是 ARM 1GHz Cortex A8 - Freescale i.MX535。这款小型面板的内存容量为 512MB RAM 内存、512 KB SRAM 内存(带电池备份)和 256MB ROM 内存。

IC754CGL06CTD终端安装了 Microsoft Windows 7 Embedded Compact(32 位)操作系统。要对面板上使用的应用程序进行编程，用户必须获得 Proficy View Machine Edition 软件(Proficy Machine Edition 的一部分)。

要连接程序下载，请使用 RS232/RS485 通讯端口和 HMI-CAB 通讯电缆。用户还可以通过闪存卡端口(SD 卡)访问面板进行编程。将程序复制到 SD 卡上，然后将卡放入 SD 卡插槽并重新启动设备。

IC754CGL06CTD 连接到 24 伏直流电源时最大消耗 15 瓦。输入电压在 24V DC ±20% 范围内是可接受的。位于输入端子旁边的是 USB、以太网和 RS-232 连接器。该终端安装在 IP65 等级的外壳中，其尺寸为 7.56 × 5.39 × 1.42 英寸(192 × 137 × 36 毫米)。该物品的重量约为 0.800 公斤(1.76 磅)。此 HMI 应在 0 至 50 摄氏度的温度下使用。

IC754CGL06CTD 压力导向触摸屏 GE/通用电气

The IC754CGL06CTD is an operating interface manufactured by GE(General Electric). It is part of the QuickPanel+ series. It is a 7-inch widescreen TFT color touch screen terminal based on an integrated microcomputer. The screen is designed with 800 x 480 pixel WVGA resolution and features an LED-backlit display. It is projected capacitive touch screen.

IC754CGL06CTD HMI(Human Machine Interface) is used as an interface for industrial control systems. It is very flexible with advanced communication options. The microprocessor that runs the entire system on the panel is the ARM 1GHz Cortex A8-Freescale i.MX535. The small panel comes with 512MB RAM, 512KB SRAM (with battery backup), and 256MB ROM.

The IC754CGL06CTD terminal is installed with the Microsoft Windows 7 Embedded Compact(32-bit) operating system. To program the applications used on the panel, the user must obtain the Proficy View Machine Edition software (part of Proficy Machine Edition).

To connect the program download, use the RS232/RS485 communication port and the HMI-CAB communication cable. Users can also access the panel for programming through the flash memory card port (SD card). Copy the program to the SD card, then put the card into the SD card slot and restart the device.

The IC754CGL06CTD consumes a maximum of 15 watts when connected to a 24 volt DC supply. The input voltage is acceptable in the range of 24V DC ±20%. Next to the input terminals are USB, Ethernet, and RS-232 connectors. The terminal is housed in an IP65-rated housing that measures 7.56 x 5.39 x 1.42 inches (192 x 137 x 36 mm). The object weighs about 0.800 kilograms (1.76 pounds). This HMI should be used at temperatures between 0 and 50 degrees Celsius.
